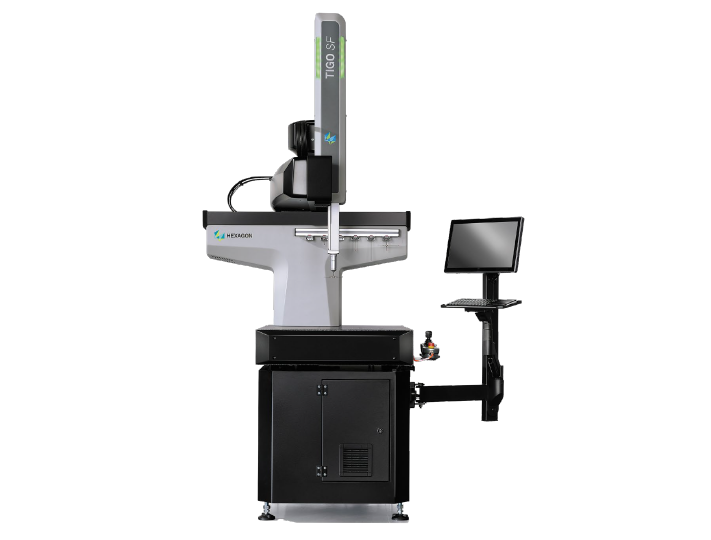

TIGO SF is an accurate and compact CMM specifically designed for use on the shop floor. With a measurement volume of 500 x 580 x 500 mm (X/Y/Z), it is the ideal measurement solution for a wide range of small and medium size parts from all industrial sectors.
Guiding the CMM through the unknown
Scanning of unknown paths can often be challenging and time-consuming. The advanced firmware algorithms of Scan Pilot offer greater motion control capabilities that ensure robust scanning performance.
Gliding smoothly through the measurements
Fly2 Mode further optimises machine motion and minimises idle times so that the machine glides smoothly through its movement trajectories. As a result, program execution times are decreased considerably
Save energy, sustain the environment
Eco Mode was implemented to reduce the operating cost of CMMs by decreasing energy consumption, and to help protect and sustain the environment. Eco Mode automatically powers down the machine when it stands idle.
Extended
temperature
A network of thermal sensors combined with enhanced structural machine temperature compensation, ensures optimum machine performance in harsh environments even at high temperatures and gradients.
| Max. Permissible Error MPE (µm) and Max. Permissible Limit MPL (µm) according to ISO 10360-2:2009 | Volumetric length measuring error 1) | Repeatability range |
| MPE(E0/E60) | MPL(R0) | |
| Temperature range T1 (T1: 18 - 22 °C) | 2.2 + L/300 | 1.6 |
| Temperature range T2 (T2: 16 - 26 °C) | 2.5 + L/250 | |
| Temperature range T3 (T3: 15 - 30 °C)) | 2.7 + L/200 | |
| Temperature range T4 - XT option: (T4: 15 - 40 °C) | 3.7 + L/100 | |
| Temperature range T5 - XT option (T5: 15 - 40 °C) | 3.7 + L/80 |
| Max. Permissible Error MPE (µm) according to ISO 10360-5:2010 | ||
|---|---|---|
| Single stylus form error | MPE(PFTU) | 2.2 |
| Max. Permissible Error MPE (µm) and Max. Permissible Time MPT (s) according to ISO 10360-4:2000 | ||
|---|---|---|
| Single stylus form error, scanning 2) | MPE(THP)/MPT(τ) | 3.5/50 |
| Max. Permissible Error MPE (µm) and Max.
Permissible Limit MPL (µm) according to ISO 10360-2:2009 | Volumetric length measuring error 1) | Repeatability range |
| MPE(E0/E60) | MPL(R0) | |
| Temperature range T1 (T1: 18 - 22 °C) | 2.4 + L/300 | 1.8 |
| Temperature range T2 (T2: 16 - 26 °C) | 2.7 + L/250 | |
| Temperature range T3 (T3: 15 - 30 °C)) | 2.9 + L/200 | |
| Temperature range T4 - XT option: (T4: 15 - 40 °C) | 3.9 + L/100 | |
| Temperature range T5 - XT option (T5: 15 - 40 °C) | 3.9 + L/80 |
| Max. Permissible Error MPE (µm) according to ISO 10360-5:2010 | ||
|---|---|---|
| Single stylus form error | MPE(PFTU) | 2.4 |
| Max. Permissible Error MPE (µm) and Max.
Permissible Limit MPL (µm) according to ISO 10360-2:2009 | Volumetric length measuring error 1) | Repeatability range |
| MPE(E0/E60) | MPL(R0) | |
| Temperature range T1 (T1: 18 - 22 °C) | 2.6 + L/300 | 2.0 |
| Temperature range T2 (T2: 16 - 26 °C) | 2.9 + L/250 | |
| Temperature range T3 (T3: 15 - 30 °C)) | 3.1 + L/200 | |
| Temperature range T4 - XT option: (T4: 15 - 40 °C) | 4.1 + L/100 | |
| Temperature range T5 - XT option (T5: 15 - 40 °C) | 4.1 + L/80 |
| Max. Permissible Error MPE (µm) according to ISO 10360-5:2010 | ||
|---|---|---|
| Single stylus form error | MPE(PFTU) | 2.6 |
| Dynamics | |
|---|---|
| Max. 3D Speed | 520 mm/s |
| Max. 3D Acceleration | 1750 mm/s2 |
| Max. Scanning Speed | 300 mm/s |
| Performance test according to the following specification | Ambient temperature | Max. air temperature var | Max. gradient in space |
|---|---|---|---|
| Temperature range T1 | 18 °C - 22 °C | 1 °C/h - 2 °C/24h | 1 °C/m |
| Temperature range T2 | 16 °C - 26 °C | 1 °C/h - 5 °C/24h | |
| Temperature range T3 | 15 °C - 30 °C | 2 °C/h - 5 °C/24h | |
| Temperature range T4 | 15 °C - 40 °C | 2 °C/h - 5 °C/24h | |
| Temperature range T5 | 15 °C - 40 °C | 2 °C/h - 10 °C/24h |
| Technical characteristics | HP-S-X1C |
|---|---|
| Overtravel range | ± 2 mm in all axes |
| Stylus joint | M3 |
| Max. stylus weight | 33 g |
| Max. stylus length | Vertical: up to 225 mm Horizontal: up to 100 mm |
| Technical characteristics | HH-A-M5 / HH-A-T5 Indexable Probe Head | HH-A-M7.5 / HH-A-T7.5 Indexable Probe Head |
|---|---|---|
| Angular rotation | A axis: +90° / -115° B axis: ±180° | A axis: +105° / 0° B axis: ±180° |
| Angular rotation step | 5° | 7.5° |
| Max. applied torque | 0.6 Nm | |
| Max. extension length | 300 mm | |
| Characteristics | Specifications |
|---|---|
| Mechanical frame | X: T Frame made of welded steel; Y carriage: made in steel; Z axis: Micromachined steel extrusion |
| Surface plate | Material: Granite Flatness: according to DIN 876/III Part Locking: threaded inserts M8 x 1.25e |
| Weight | Max. Part Weight: 150 kg; CMM Weight approx.: 800 kg |
| Sliding system | Dual lineas guide with recirculating ball bearings on all axes |
| Measuring system | METALLUR® linear scales. System Resolution: 0.039 μm |
| Temperature compensation | Multi-sensor temperature compensation technology |
| Ram counterbalance | Steel spring |
| Supply Requirements | Power. 100/120/230/240 V ± 10% - 50/60 Hz - 2.5 KVA (+0.7 KVA - XT option) Air. no air required |
| Consumption | Power. 0.4 KVAh (+0.55 KVAh - XT option) |
| Operating Specifications | Ambient temperature: 10 - 40 °C Relative humidity: 20% - 90 % non-condensing |
