OptimScan Q12 is a high-precision 3D scanner with 4 × 12.3 megapixel cameras. It supports two scan ranges, allowing users to switch between them with a single click. Compared to the previous generation, OptimScan Q12 offers enhanced data acquisition capabilities, faster scanning speed, and broader material adaptability.
The OptimScan Q12 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length. Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object’s surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.
Powered by a built-in dual-chip computing module, OptimScan Q12 delivers fast image acquisition and data processing. Each shot less than 1 second, capturing an impressive 12 million points with exceptional precision. To further streamline the workflow, Q12 offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.

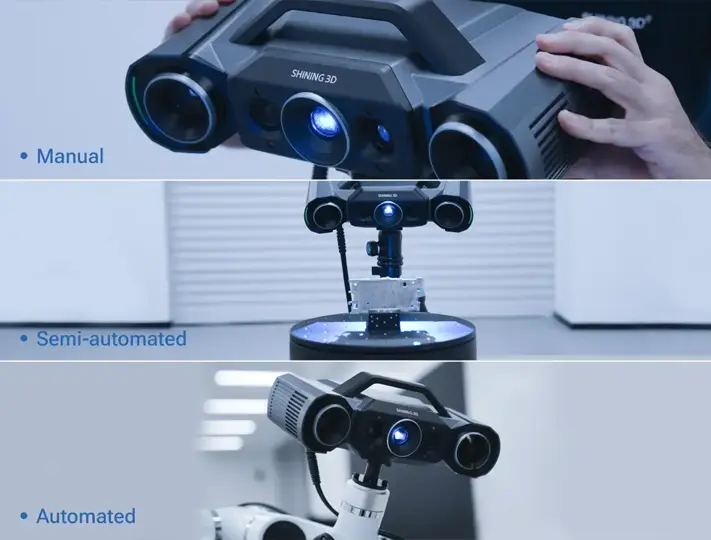

OptimScan Q12 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
OptimScan Q12 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
| Device | OptimScan Q12 | |
|---|---|---|
| Scan range | Large range | Small range |
| FOV | 430 × 300 mm | 160 × 110 mm |
| Accuracy | 0.015 mm | 0.005 mm |
| Point distance | 0.1 mm | 0.04 mm |
| Working distance | 590 mm | 210 mm |
| Depth of field | 300 mm | 60 mm |
| Resolution | 4 × 12.3MP | |
| Light source | Blue LED | |
| Weight | OptimScan Q12: 3.5 kg | |
| Dimensions | 366 × 162 × 132 mm | |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX | |
| Acceptance test | VDl/VDE 2634 Part2 (certified in ISO 17025 certificated accuracy lab) | |
