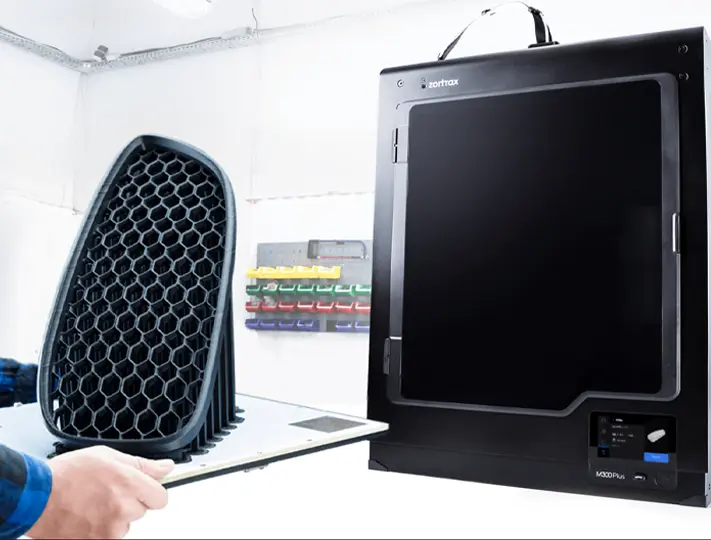

M300 Plus
Functional Lamp
Car Grille Prototype
Apartment Cross-Section Model
| Device | Specifications |
|---|---|

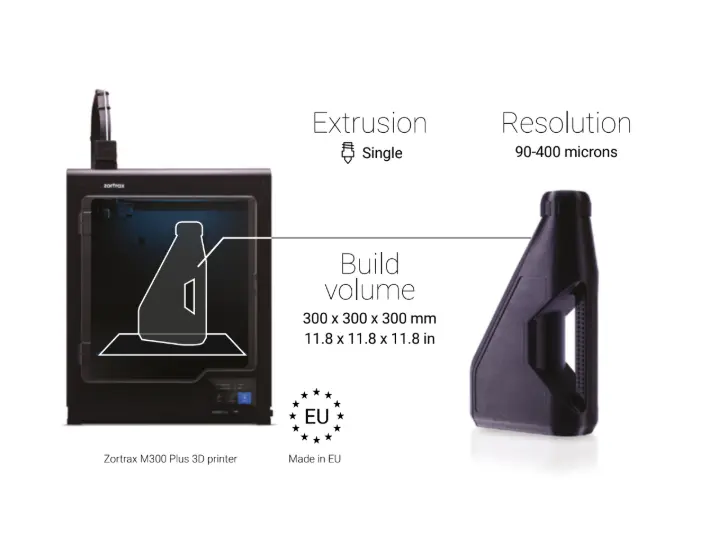

| Build volume | 300 × 300 × 300 mm (11.8 × 11.8 × 11.8 in) |
| Nozzle diameter | 0.4 mm (0.016 in) – standard / 0.3 mm (0.012 in) / 0.6 mm (0.024 in) |
| Extruder | Single (compatible with demanding materials like TPU or nylon) |
| Extruder cooling system | Radial fan cooling the extruder block; two fans cooling the print |
| Hotend | Single, V3 |
| Platform | Heated; perforated and glass plates are applicable |
| Material endstop | Mechanical |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4" IPS 800 x 480 |
| Camera | Yes |
| Filaments | Specifications |
|---|---|
| Available Filaments | BASF Ultrafuse® ABS, Nanovia PC-ABS V0, Z-ABS, Z-ABS 2, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PCABS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT |
| External materials | Applicable |
| Support | Mechanically removed – printed with the same material as the model
Soluble – printed with a different material than the model |
| Filament container | Spool |
| Filament diameter | 1.75 mm (0.069 in) |
| Printing | Specifications |
|---|---|
| Technology | LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform |
| Layer resolution | 90-400 microns |
| Minimal wall thickness | 450 microns |
| Platform levelling | Automatic measurement of platform points’ height |
| Temprature | Specifications |
|---|---|
| Maximum Printing Temprature (Extruder) | 290 °C (554 °F) |
| Maximum Platform Temprature | 105 °C (221 °F) |
| Ambient Operation Temprature | 20–30 °C (68–86 °F) |
| Storage Temprature | 0–35 °C (32–95 °F) |
| Electrical | Specifications |
|---|---|
| Ac Input | 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
| Maximum Power Consumption | 360 W |
| Software | Specifications |
|---|---|
| Software Bundle | Z-SUITE |
| Support Input File Types | .stl, .obj, .dxf, .3mf, .ply |
| Supported Operating System | Mac OS Catalina and newer versions / Windows 10 and newer versions |
