M300 Dual
Zortrax M300 Dual can speed up printing thanks to the Speed Mode feature available in a free firmware update. Print speed can be adjusted during the ongoing printing process without having to hit the pause button.
Zortrax M300 Dual can speed up printing thanks to the Speed Mode feature available in a free firmware update. Print speed can be adjusted during the ongoing printing process without having to hit the pause button.
Industrial-class 3D printing on your desk
Model of gear mechanism before support material dissolution
Car Gearbox
Part of a Vr Headset
The M300 Dual can simultaneously print with both model and water-soluble support filaments in a large build volume measuring 265 × 265 × 300 mm. This makes it capable of printing big models needed in industries like aerospace, automotive, or architecture.
The printer can detect when the filament ran out or jammed. In both scenarios the print is paused and a notification is sent to the user. The work can be resumed from the same spot when the problem is solved.
With a capacitive displacement sensor, the M300 Dual can automatically calibrate to work with glass, perforated, or other types of build platforms. This way it’s possible to customize the printer for the project at hand.
Zortrax Speed mode is a fully free feature for M Series Plus and M300 Dual 3D printers, which users can access from the printer menu. The feature lets you speed up your 3D printing project even up to 3 times.
To deal with power outages, the Blackout Response System stores enough energy to save the printing progress. Printing can be resumed from the same spot when the power is back on.

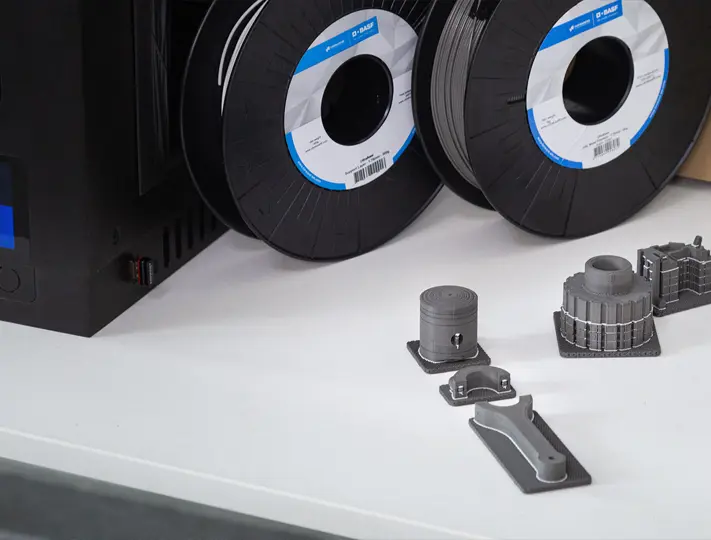

Professional users often need special-purpose filaments for their projects. That’s why the M300 Dual can work with all third-party 1.75 mm filaments available on spools with no adverse effect on utility.
Multiple M300 Dual 3D printers can be connected via Wi-Fi or Ethernet network to work in large, remotely controlled clusters. Such 3D printing farms can be used for bridge manufacturing or small to medium scale production.
| Device | Specifications |
|---|---|
| Build volume | 265 × 265 × 300 mm (10.4 × 10.4 × 11.8 in) |
| Nozzle diameter | 0.4 mm (0.016 in) – standard, 0.6 mm (0.024 in) |

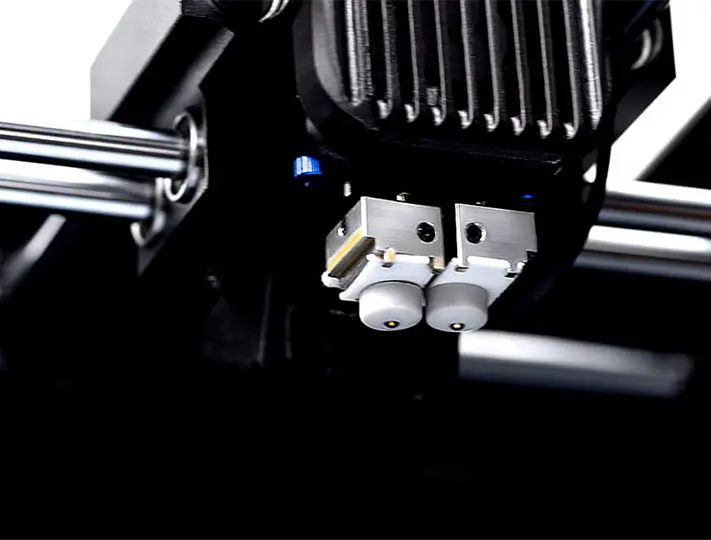

| Extruder | Dual, printing with model and support material |
| Extruder cooling system | Two fans cooling the extruder, radial fan cooling the print |
| Hotend | Dual |
| Platform | Heated; perforated and glass plates are applicable |
| Material endstop | 2 × mechanical |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4" IPS 800 x 480 |
| Camera | Yes |
| Filaments | Specifications |
|---|---|
| Dedicated for single extrusion | Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, BASF Ultrafuse® PAHT CF15, BASF Ultrafuse® PP GF30, BASF Ultrafuse PET CF15, 3DXTECH CarbonX PETG+CF, Kimya PETG Carbon, Kimya ABS-ESD, Nanovia PC-ABS V0, Nanovia PETG CF |
| Dedicated for dual extrusion | Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-NYLON, Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-SUPPORT ATP, Z-SUPPORT Premium, Z-ULTRAT, BASF Ultrafuse 17-4 PH, BASF Ultrafuse 316L, BASF Ultrafuse ABS, BASF Ultrafuse BVOH, BASF Ultrafuse PAHT CF15, BASF Ultrafuse Support Layer, Nanovia PC-ABS V0 |
| External materials | Applicable |
| Support | Mechanically removed – printed with the same material as the model
Soluble – printed with a different material than the model |
| Filament container | Spool |
| Filament diameter | 1.75 mm (0.069 in) |
| Printing | Specifications |
|---|---|
| Technology | LPD Plus (Layer Plastic Deposition Plus) – advanced technology depositing melted thermoplastics with dissolvable support structures |
| Layer resolution | 150–500 microns |
| Minimal wall thickness | 450 microns |
| Platform levelling | Automatic measurement of platform points’ height / manual measurement of platform points’ height |
| Temprature | Specifications |
|---|---|
| Maximum Printing Temprature (Extruder) | 310 °C (590 °F) |
| Maximum Platform Temprature | 105 °C (221 °F) |
| Ambient Operation Temprature | 20–30 °C (68–86 °F) |
| Storage Temprature | 0–35 °C (32–95 °F) |
| Electrical | Specifications |
|---|---|
| Ac Input | 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
| Maximum Power Consumption | 400 W |
| Software | Specifications |
|---|---|
| Software Bundle | Z-SUITE |
| Support Input File Types | .stl, .obj, .dxf, .3mf, .ply |
| Supported Operating System | Mac OS Catalina and newer versions / Windows 10 and newer versions |
