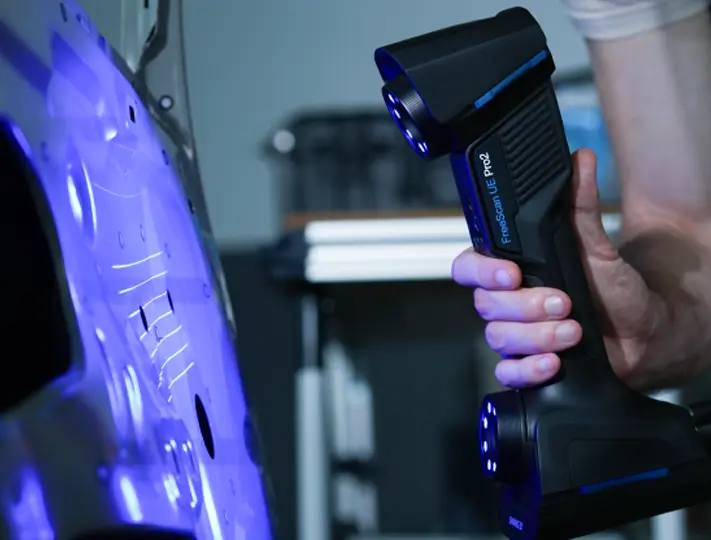

FreeScan UE Pro2

Based on the capabilities of FreeScan UE series, FreeScan UE Pro2 features an innovative integrated WIRELESS module for more flexibility and mobility. With its ultra-fast scan speed, efficiency is doubled, empowering quicker project completion.

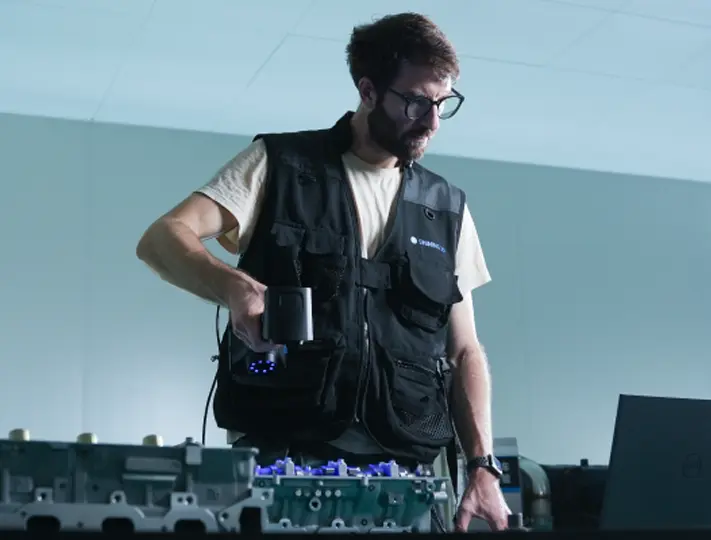

Wireless and Portable

Integrated with Wireless module, FreeScan UE Pro2 liberates you from cables, allowing seamless data transmission during scanning. Perfect for on-site fieldwork, shopfloor and harsh working environment, this 950g scanner empowers you to capture accurate 3D data effortlessly, wherever your projects happen.

Double the Speed, Double the Productivity

FreeScan UE Pro2 offers nearly double scanning efficiency compared to the previous generation. With a rapid scan speed up to 3,460,000 points/s, you can complete the scanning tasks smoothly, thus allowing you to focus on inspection applications to enhance your overall productivity.

Wireless Scanning Wherever You Go

Embedded Computing Module

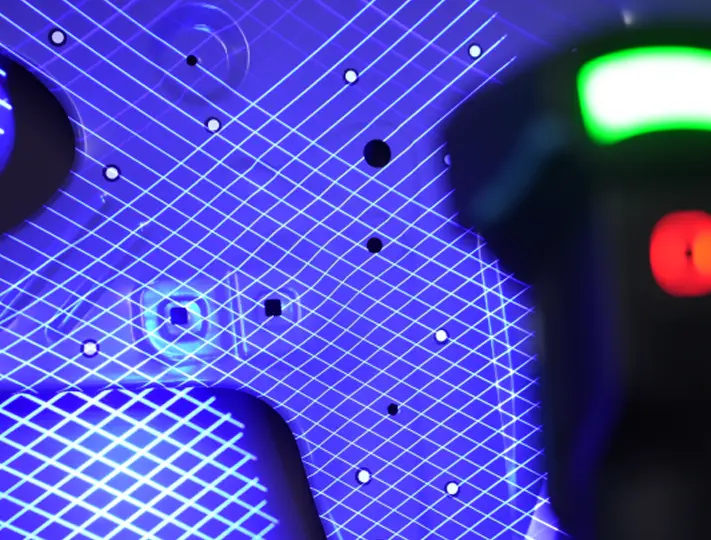

50 Laser Lines

High Frame Rate

Certified and Guaranteed Results

With the volumetric accuracy up to 0.02 mm + 0.015 mm/m using photogrammetry, FreeScan UE Pro2 delivers consistent and reliable global accuracy and scanning results.
SHINING 3D Accuracy Laboratory, accredited by CNAS in accordance with ISO 17025, ensures rigorous calibration of optical metrology

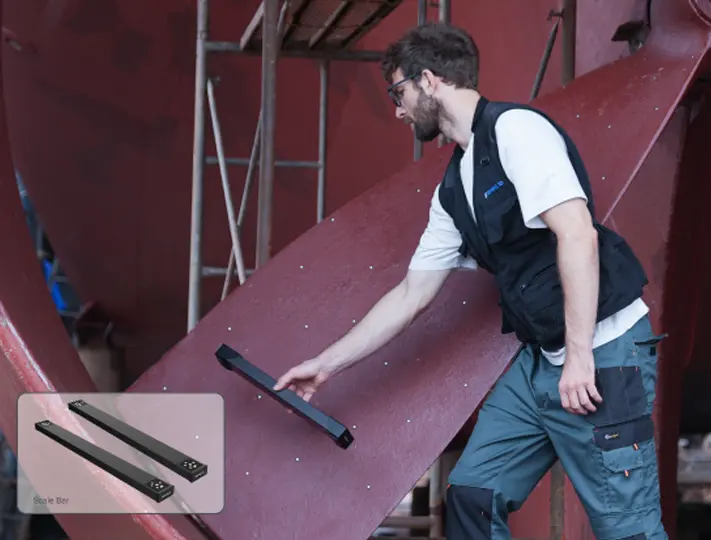

Elevated Accuracy for Large-Scale Scans

Patented Binocular Photogrammetry: FreeScan UE Pro2 features patented innovative built-in photogrammetry technology for scanning large objects, quickly optimizing the spatial position of global markers, ensuring consistent accuracy.

FreeScan Software: Intuitive and Powerful

Real-time Display
of Mesh Data

Customized Scanning
Template

Data Quality
Visualization

Flexible
Resolution

3 Functions for Versatile Applications

High-speed scanning

Detail scanning

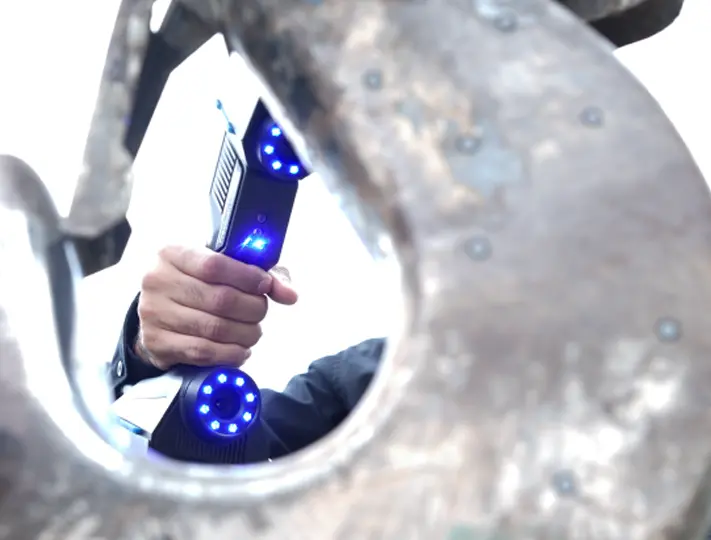

Deep hole scanning

Quick On-Site Inspection

Our integrated inspection module ensures rigorous quality control. Simplify operations and enhance fast quality check on-site for you.

Technical Specifications

DeviceFreeScan UE Pro2
Scan modeMultiple lines scanFine scanSingle line scan
Light source50 laser lines7 parallel laser lines1 laser line
Working distance 300 mm (11.8 in)200 mm (7.9 in)300 mm (11.8 in)
Scan accuracy 0.02 mm (0.0008 in)
Volumetric accuracy 0.02 + 0.03 mm/m (0.02 + 0.015 mm/m with photogrammetry)
(0.0008 in + 0.00036 in/ft (0.0008 in + 0.00018 in/ft with photogrammetry))
Scan speed Up to 3,460,000 points/s
Scan depth 360 mm (14.2 in)
Max. FOV 600 x 550 mm (23.6 x 21.7 in)
Point distance 0.01 ~ 10 mm (0.0004 ~ 0.4 in)
Laser classClass II (eye safe)
Connection standardUSB 3.0
Dimension305.8 x 118.9 x 100.8 mm (12.0 x 4.7 x 4.0 in)
Weight0.95 kg
Power input 24V, 3.75A
Working temperature -20 ~ 40°C (-4 ~ 104°F)
Working humidity 10% ~ 90%
CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Accuracy Certification VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
Recommended computer
configuration
OS: Windows 11 Professional 22H2 (64-bit)
Processor: 13th Gen Intel® Core™ i7-13700H or above
Graphics Card: NVIDIA GeForce RTX 4060 Laptop GPU or above
Video Memory: 8G or above; RAM: 64G or above, DDR5 dual-channel; Interface USB 3.0
