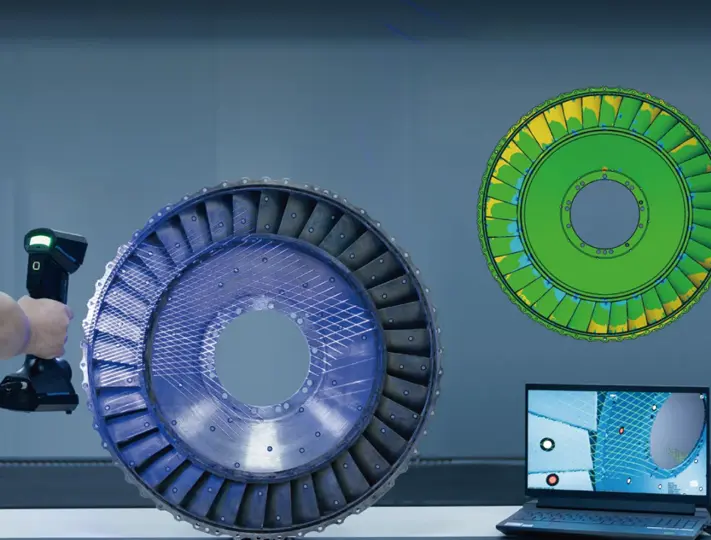

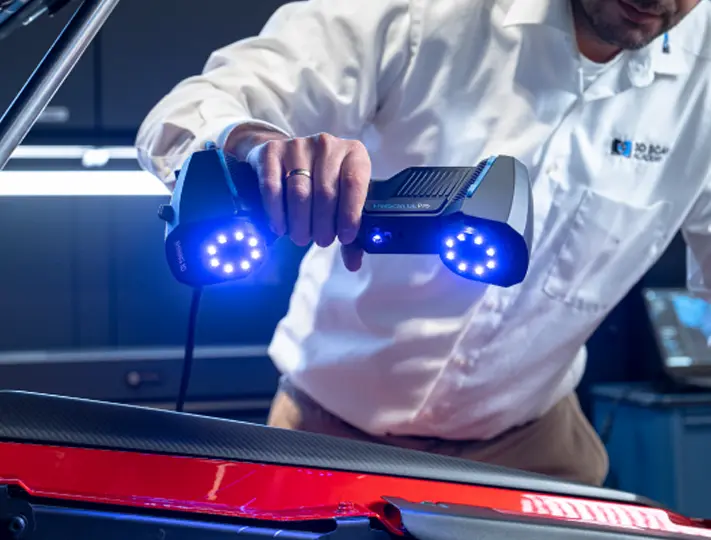

FreeScan UE Pro inherits the high-precision, metrology-grade accuracy, and lightweight design of FreeScan UE, while improving the ability of fine scanning and global precision control of large-scale workpiece scanning. It adopts 26+7+1 blue laser lines and integrates a photogrammetric module.

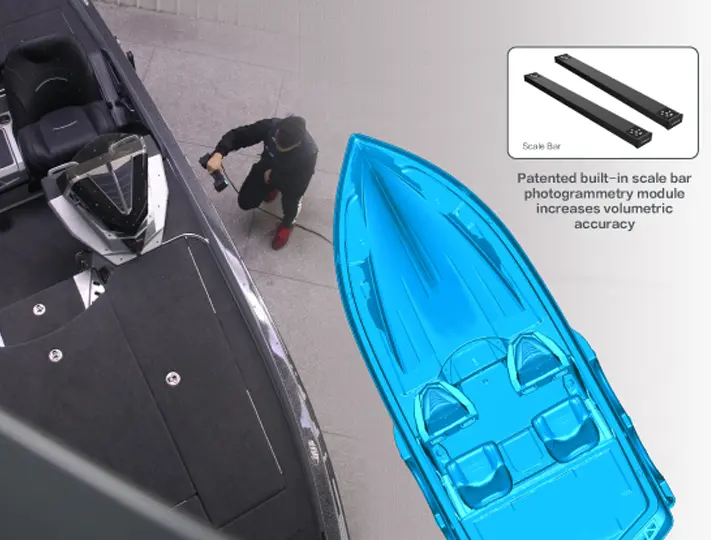

Integrated photogrammetry function no need to apply coded targets, quickly locks the spatial position of the target frame.
13 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details and single laser line for deep hole and pocket area scanning.

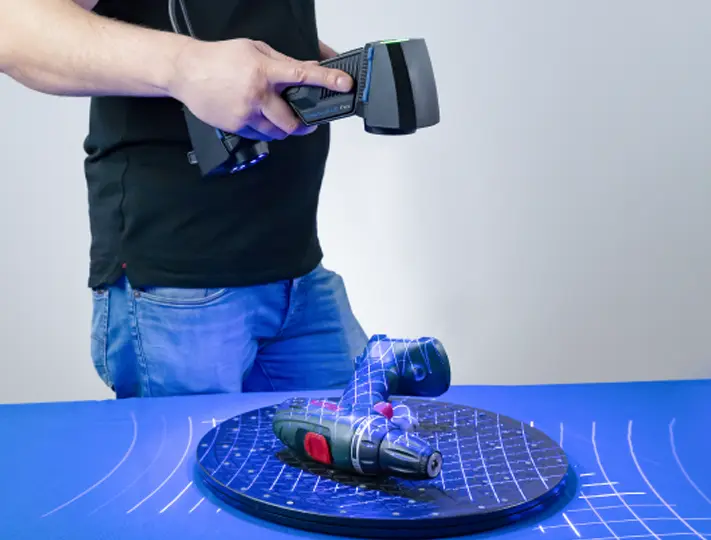

Inheriting the lightweight and ergonomic design of the UE series, the user-friendly scanning software enables an easy operation and shortens the learning curve.
The scan data can be imported into all mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.
| Device | FreeScan UE Pro | |
|---|---|---|
| Scan Mode | Multiple Lines Scan, Single Line Scan | Fine Scan |
| Light Source | 26 laser lines + single laser line | 7 parallel laser lines |
| Scan Accuracy | up to 0.02 mm | |
| Scan Speed | 1,850,000 points/s | |
| Working Distance | 300 mm | 200 mm |
| Scan Depth | 170 mm - 680 mm | |
| Max. Scan Range | 600 mm×550 mm | |
| Point Distance | 0.01 - 10 mm | |
| Photogrammetry | Built-in scale bar photogrammetry mode | |
| Volumetric Accuracy* | 0.02+0.03 mm/m (standard mode); 0.02+0.015 mm/m (built-in photogrammetry mode) | |
| Laser Class | Class II (eye safe) | |
| Connection Standard | USB 3.0 | |
| Dimension | 298 mm x 103.5 mm x 74.5 mm | |
| Weight | 840 g | |
| Power Input | 12 V, 5.0 A | |
| Working Temperature | -20 ~ 40℃ | |
| Working Humidity | 10 ~ 90% | |
| Certification | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX | |
| Accuracy certification | VDIV/DE 2634 Part3 (certificated in ISO 17.025 certificated accuracy lab) | |
| Recommended Computer
Configuration | OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory: ±6 G; Processor: T7-8700; Memory: ±32 GB | |
