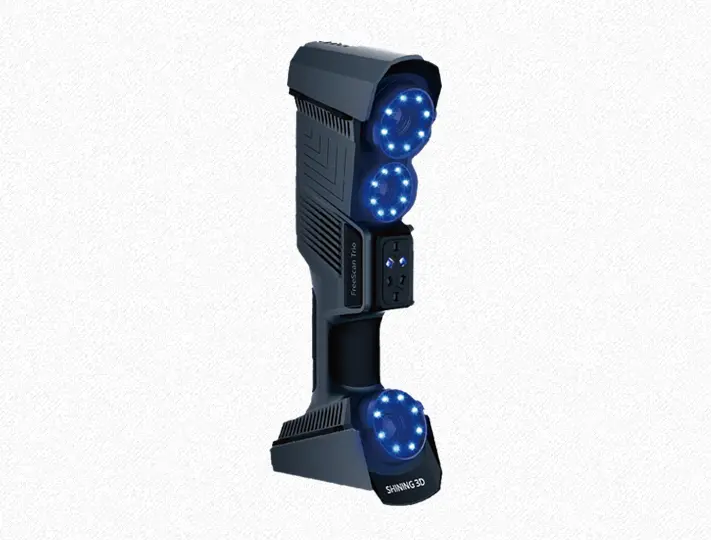

FreeScan Trio
Redefining the cutting-edge technology in optical 3D metrology.FreeScan Trio is the industry’s first marker-free handheld 3D scanner that owns the unique innovative technologies to address a wide range of inspection tasks.
Redefining the cutting-edge technology in optical 3D metrology.FreeScan Trio is the industry’s first marker-free handheld 3D scanner that owns the unique innovative technologies to address a wide range of inspection tasks.

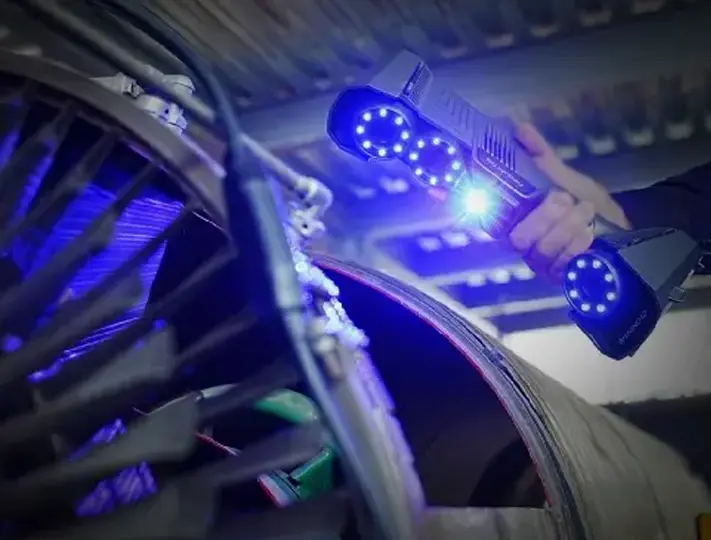

No Markers Scan Mode: FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.

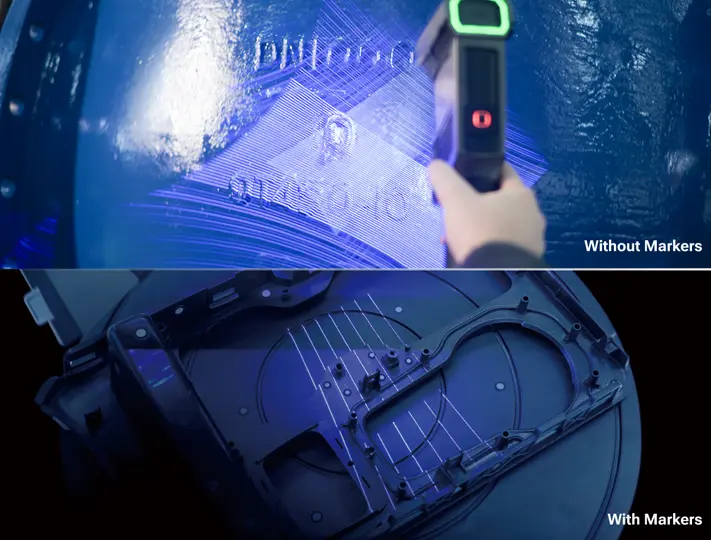

FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.

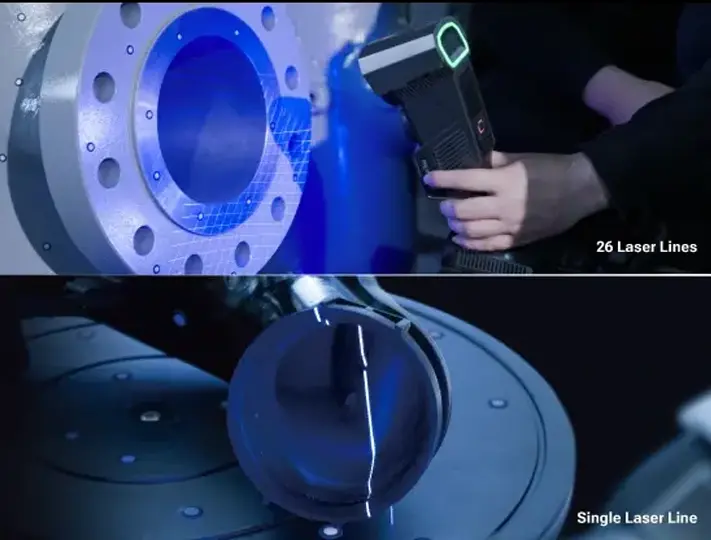

Both 26 and single laser lines of FreeScan Trio are capable of scanning holes, deep pockets and fin walls, thanks to its optimized camera angles and advanced scanning modes.

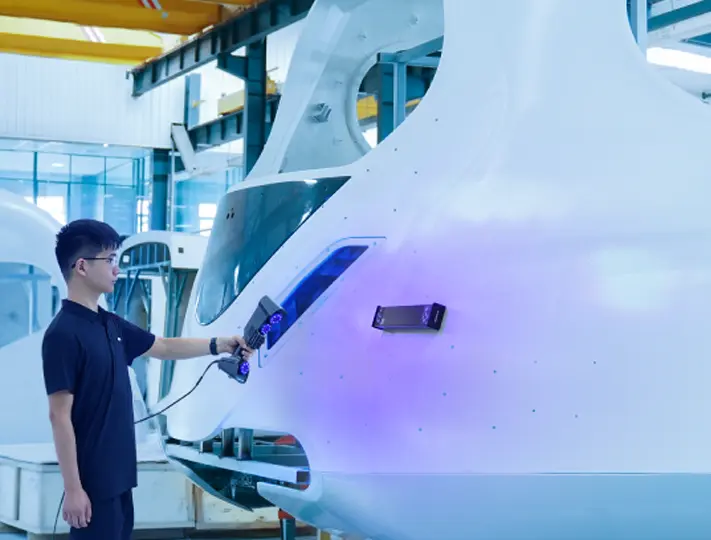

Fast and easy setup: Different from traditional photogrammetry methods, our binocular photogrammetry technology eliminates the usage of coded targets, reduces preparation time by at least half and ensures the high level of volumetric accuracy for large object scanning.
FreeScan Trio delivers consistent and reliable global accuracy and scanning results for all projects.Accredited by CNAS in accordance with ISO 17025,SHINING 3D Accuracy Laboratory, ensures rigorous calibration of optical metrology.Based on VOLVOE 2634 guidelines,the laboratory guarantees the traceability of measurement processes and calibration results.
| Device | FreeScan Trio | |||
|---|---|---|---|---|
| Scan mode | High Speed Scan | Deep Hole Scan | Detailed Scan | No Markers Scan |
| Light source | 26 laser lines | 26/single laser lines | 7 parallel laser lines | 98 laser lines |
| Working distance | 300 mm | 300 mm | 200 mm | 300 mm |
| Scan accuracy | 0.02 mm | / | ||
| Scan speed | Up to 3,010,000 points/s | |||
| Scan depth | 360 mm | |||
| FOV | 650 x 680 mm | |||
| Volumetric accuracy* | 0.02 ± 0.03 mm/m (0.02 ± 0.015 mm/m with photogrammetry) | |||
| Point distance | 0.01 - 3 mm | |||
| Laser class | Class II (eye-safe) | |||
| Connection standard | USB 3.0 | |||
| Dimensions | 331 x 120 x 76 mm | |||
| Weight | 965 g | |||
| Power input | 12% 5.0A | |||
| Working temperature | 0 ~ 40°C | |||
| Working humidity | 10 ~ 90% | |||
| Certifications | CE, FCC, ROHS, WEEE, KG, FDA, UKCA, IP50, TISAX | |||
| Accuracy certification | VOIVADE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) | |||
| Recommended computer configuration | QS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 4060; Video memory : 8G, Processor: I7-13700H; Memory : 64GB | |||
