FreeScan Omni
Standalone Inspection-Ready Metrology 3D Scanne
Standalone Inspection-Ready Metrology 3D Scanne
FreeScan Omni redefines handheld 3D metrology with its on-scanner inspection capability and wireless, standalone design. Featuring a PTB-certified inspection module, it enables the full inspection workflow-from high-speed scanning to real-time analysis-directly on the device.
With dual light sources for adaptable performance, FreeScan Omni delivers certified accuracy across diverse industrial applications. As a standalone solution, it streamlines operations, enhances efficiency, and ensures traceable, reliable results.
From production floor checks to metrology lab measurements and fieldwork on the go, FreeScan Omni delivers consistent performance wherever it’s needed.

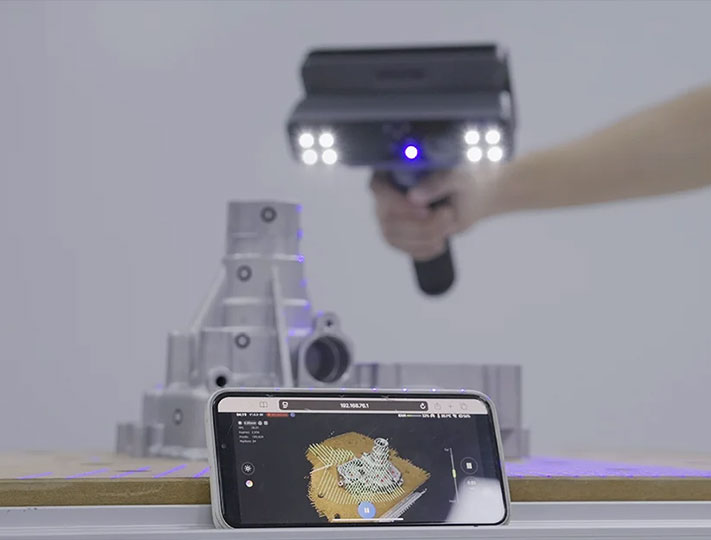

Metrology-Grade On-Scanner Inspection
From scanning and meshing to inspection and reporting, every step is seamlessly completed right on the scanner. With preset templates and an intuitive interface, frontline staff can just scan the part and get instant, consistent reports-making quality control efficient and scalable.
Built-in PTB-certified software
Integrated with SHINING3D Inspect module, the standalone device delivers instant, high-quality, full-field inspection results.
Automated & intuitive inspection
Run inspections automatically with just one click, and navigate the process effortlessly with a user-friendly interface and visualized results, making inspections both simple and efficient.
Effortless reporting & export
View detailed inspection reports directly on the device or easily export them to a USB drive or PC in multiple formats.

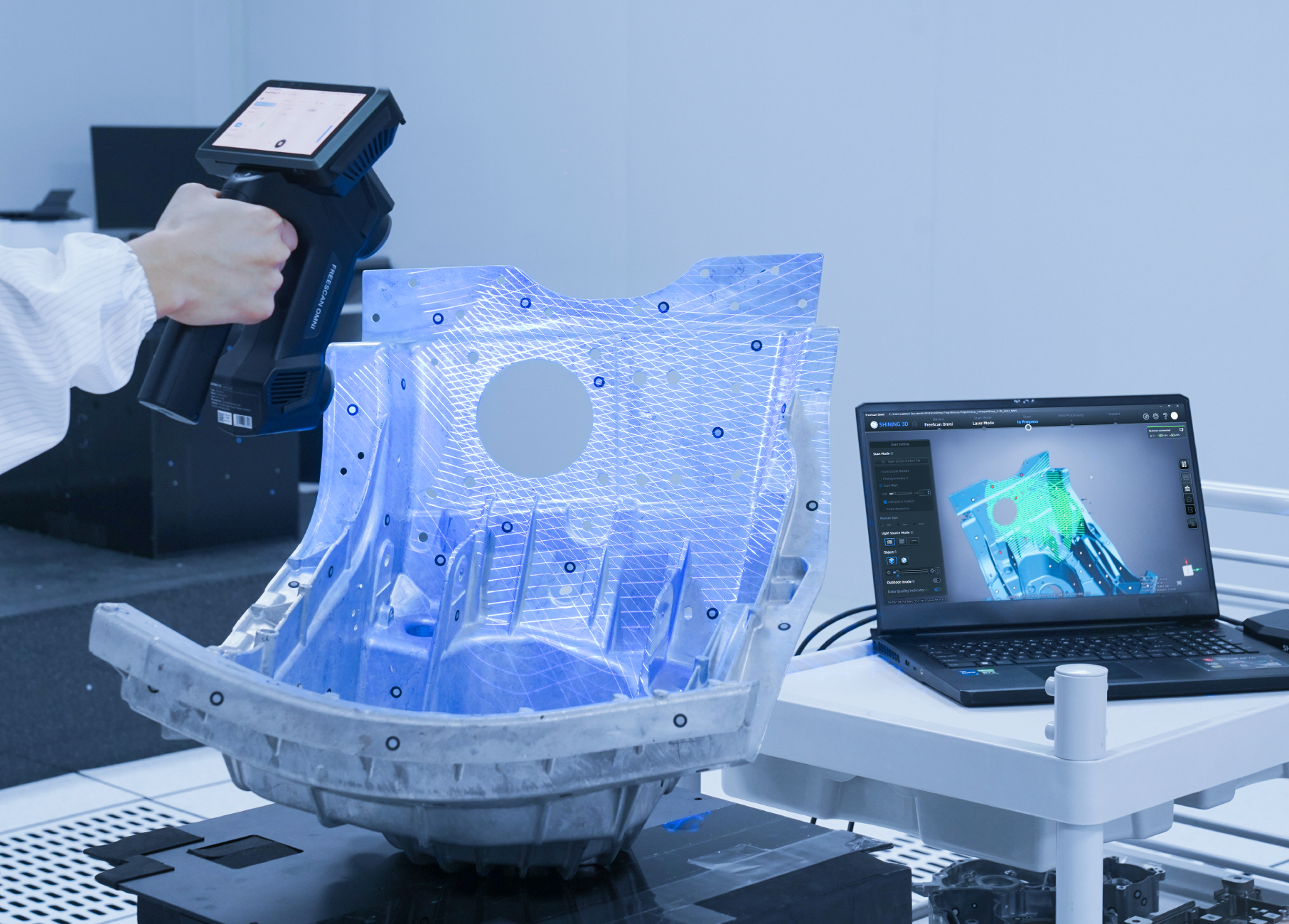

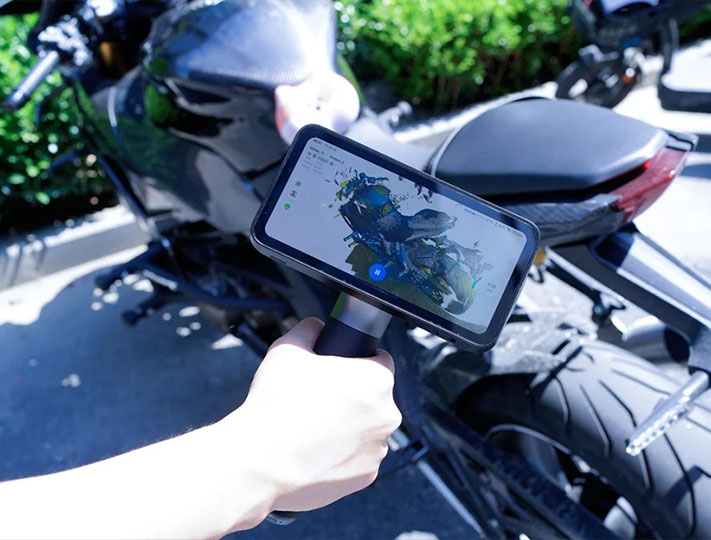

On-Site Quality Control
Delivers reliable volumetric accuracy of 0.02 + 0.03 mm/m mm/m for reliable and consistent measurement results. Built-in SHINING 3D's patented video photogrammetry (VPG) enhances volumetric accuracy while streamlining setup for efficient large-object scanning.
Powered by a high-performance processor, the system leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.
Features dual 5MP industrial cameras, capturing sharp and highly detailed 3D data for superior measurement and analysis.
2 Groups of Cameras and Projectors

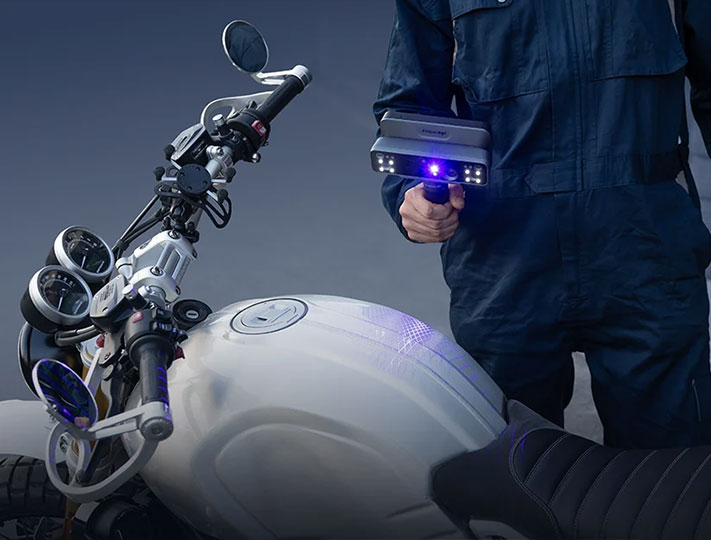

EinScan Rigil’s 2 separate groups of cameras are specifically designed to capture different light sources, enables best adaptability to laser and IR light source respectively; to achieve better data recognition under strong environmental light, to ensure precise data captured even in complex lighting environments.

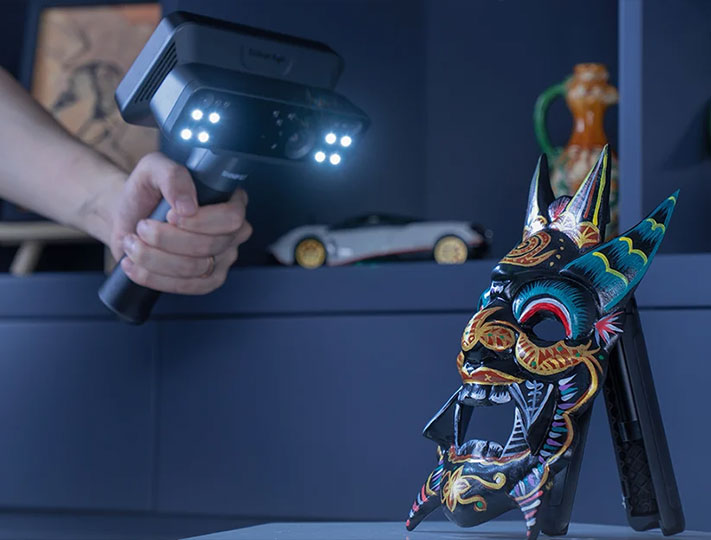

IR RapidVCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects, with eye safe portrait scanning.
EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil PC software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.
Both Blue Laser and Infrared VCSEL projectors have strong environment light adaptability, which ensure smooth scanning experience under strong sunlight.
EXScan Rigil is a dedicated PC software designed specifically for the EinScan Rigil scanner, covering the full spectrum of advanced professional scanning workflows, scanning, data modification, closed surface generation, model editing, to export and sharing.
When paired with the EinScan Rigil scanner, it delivers a seamless, flexible, and portable scanning experience that combines stability and high-quality results
| Product | FreeScan Omni | |||
|---|---|---|---|---|
| Accuracy | 0.02 mm (0.0008 in) | |||
| Volumetric accuracy with VPG | 0.02 +0.015 mm/m (0.0008 in + 0.00018 in/ft) | |||
| Scan speed | Up to 7,619,000 points/s | |||
| Hardware | Built-in computing (32G) / FPGA/1TB SSD | |||
| Max. FOV | Laser: 580 x 650 mm; IR: 1205 x 1104 mm (Laser: 22.8 x 25.6 in; IR: 47.4 x 43.5 in) | |||
| VPG | Included (no coded markers required) | |||
| Inspection module | Included (integrated on-device inspection) | |||
| High-speed scan | Included (93 laser lines) | VCSEL | |||
| Detailed scan | Included (25 parallel laser lines) | |||
| Deep pockets scan | Included (1 laser line) | |||
| Hole scanning | Intelligent hole boundary detection | |||
| Smart dock connection | Wireless & Wired mode (Fiber optic) | |||
| Output format | .stl,.asc, .3mf, .p3 | |||
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50,TELEC, TISAX | |||
| Acceptance test | VDI/VDE 2634 Part3, ISO 10360 (certified in ISO 17025 certificated accuracy lab) | |||
