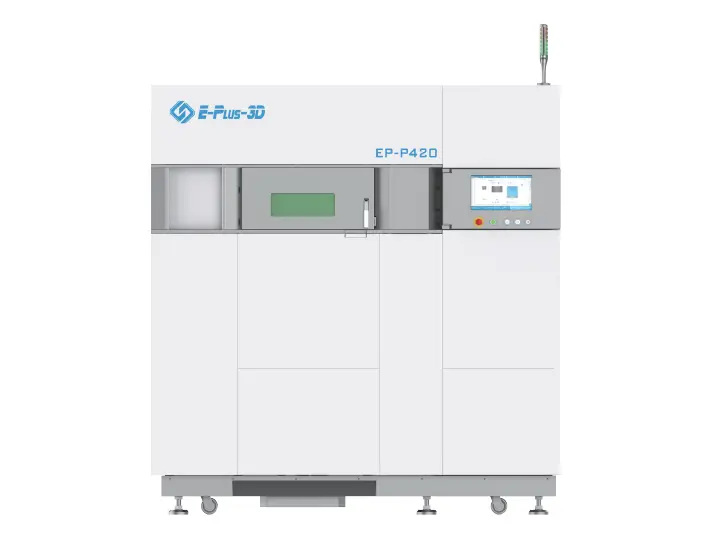

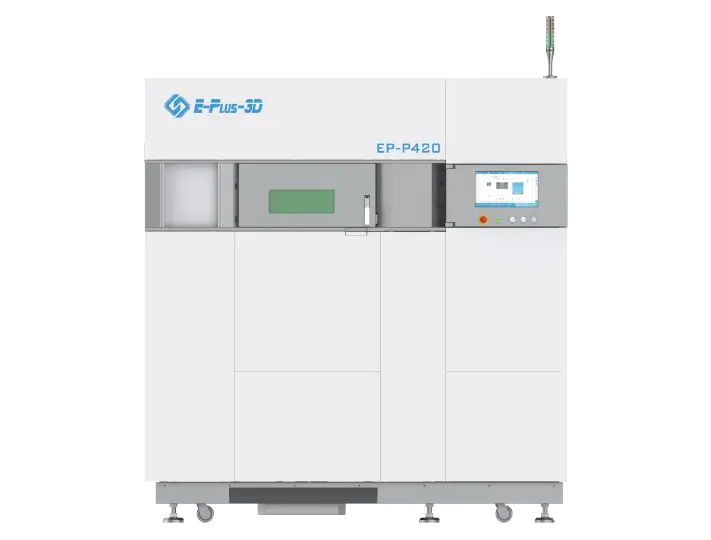

EP-P420 adopts polymer powder bed fusion (PPBF) technology, with max up to 420 × 420 × 465 mm building cylinder. EP-P420 ensures you the capability to print medium & large size parts for customized products and small batch production. Thanks to its innovative software and hardware, the EP-P420 is well designed user-friendly and cost-effective.

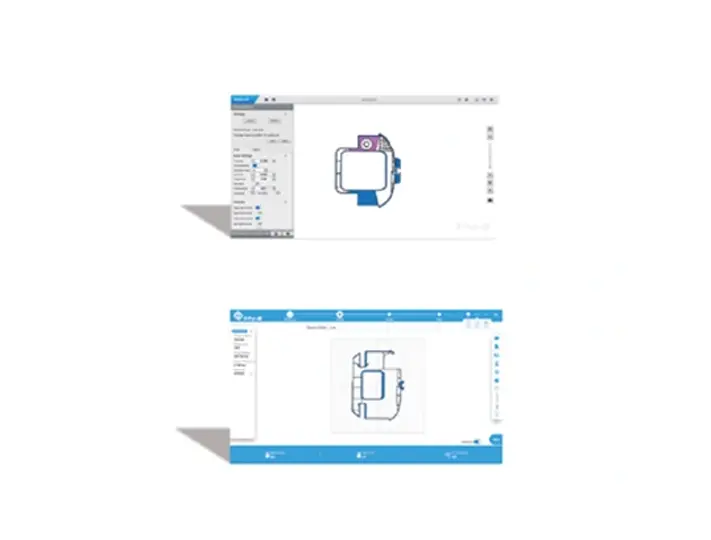

EPHatch is a process planning software independently developed by Eplus3D for its additive manufacturing systems. It can optimize the printing path based on the data that has been sliced and output, and set the scanning path separately for contour, interior, upper and lower surface of the part. In addition, EPHatch comes standard with a variety of advanced scanning strategies like long straight lines, short straight lines and checkerboards for the user, enables an optimal process setting for specific materials.
Eplus3D control software is a powerful control system independently developed by Eplus3D for its additive manufacturing systems. With open and friendly interface, it enables our users to manage their digital files easily from build preparation and parts positioning all the way to in build monitoring and reports generation. It is a powerful control and operating system for mature materials printing, as well as new materials development.
| Device | Specifications |
|---|---|
| Build Volume | 420 × 420 × 465 mm (L × W × H) |
| Dimension | 2378 × 1394 × 2505 mm (X × Y × Z) |
| Gas Supply | N₂ |
| Machine Weight | 3000 kg |
| Scanning Speed | Max. 15 m/s |
| Max. Chamber Temperature | 230 °C |
| Power Supply | AC 380 V, 50 / 60 Hz, 15 kW |
| Layer Thickness | 0.06 - 0.2 mm |
| Laser Power | CO₂ Laser, 120 W |
| Building Speed | 2500 cm³/h |
| Thermal Field Control | Independent four-zone temperature control system |
| Temperature Regulation | Continuous real-time building surface temperature monitoring |
| Control Software | EPControl, EPHatch |
| Output Data Format | STL, OBJ, STEP or other convertible file |
| Material | PA11, PA12, PA6 and its composites |
