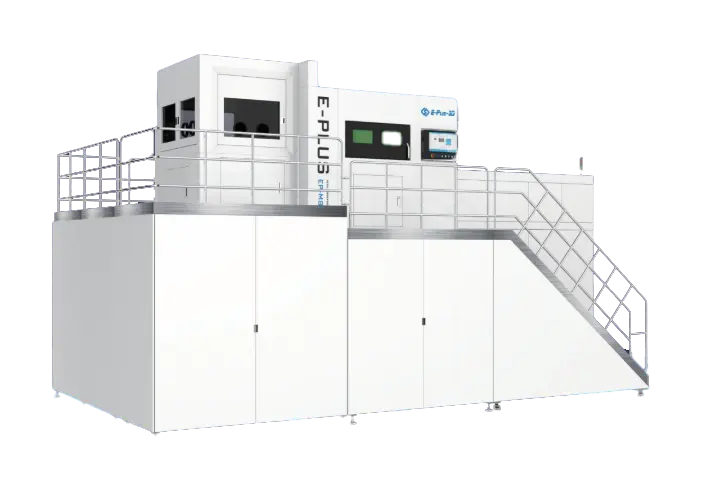

EP-M825 is using a large building envelope and ten-laser system to ensure a high efficiency production. The precise positioning and innovative area splicing control technology offers uniformity and stability throughout the whole printing phase.
| Device | Specifications |
|---|---|
| Machine Model | EP-M825 |
| Build volume | 825 x 825 x 1100 mm (32.48 x 32.48 x 43.31 in) |
| Optical System | Fiber Laser 4 / 6 / 8 / 10 x 500 W (700 W and 1000 W are optional) |
| Spot Size | 70 - 120 μm |
| Max Scan Speed | 8 m/s |
| Layer Thickness | 20 - 120 μm |
| Theoretical Printspeed | Up to 410 cm³/h |
| Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, etc |
| Power Supply | 380 V, 50 / 60 Hz, 29.5 ~ 40 kW |
| Gas Supply | Ar / N2 |
| Oxygen Content | ≤100 ppm |
| Dimension (W x D x H) | 8290 x 4690 x 5470 mm |
| Weight | 35000 kg |
| Software | EPControl, EPHatch |
| Input Data Format | STL or other Convertible File |
