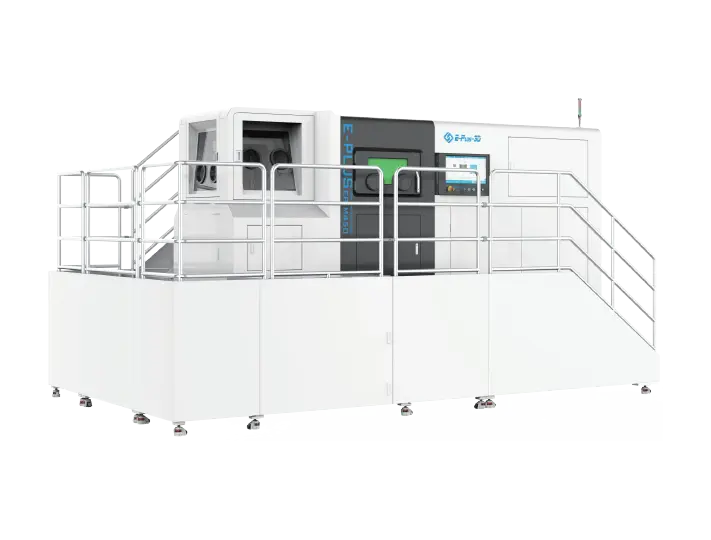

EP-M450 Metal 3D Printer

With a building chamber size of 450 x 450 x 550 mm Eplus3D Introduces EP-M450 to the successful line of MPBF™ 3D printers.

The complete open systemmakes EP-M450 a very powerful tool for large scaleproduction for our customer to access different metal powders like titanium, aluminum, nickel alloys and stainless steel, etc.

Consult an Expert
Request A Quote

High Quality

  • Printed parts' density > 99.9%, deviation in parts' mechanical properties < 5%.
  • The optimized gas flow design ensures efficient removal of smoke and splashes as well as achievement of uniform and consistent full size printing.
  • Dynamic software with ability to divide the model into different sections like upper and lower surfaces, core areas and small areas etc. Different process parameters can be applied individually to these parts for high printed part quality.
  • Overlapping deviation with dual laser printing ≤ ±0.1 mm. Overall mechanical properties of the printed part remains same when compared to printing results with the single laser machine.

High Efficiency

  • Build volume (X × Y × Z): 450 × 450 × 550 mm (height incl. build plate).
  • Printing with increased layer thickness can be realized, increasing the production capacity.
  • With in-house developed processing software (EPHatch), optimized scanning strategies can be achieved with reduced print duration.
  • Bi-directional powder recoating method leads to reduced recoating time.

Reliable

  • Excellent core optic components from world-class supplier and mature process control parameter algorithm provides highest part quality.
  • High quality uniform part printing due to excellent control over building environment and components.
  • Tightly sealed build chamber maintains oxygen concentration ≤ 100 ppm and a stable pressure during printing.
  • Sustained monitoring of powder left in feeder and ability to add powder without stopping the machine ensures uninterrupted part printing.

Cost-effective & Easy Operation

  • Blow back enabled coarse and fine filtration system ensures prolonged lifetime of filter over 30,000 hrs.
  • Highly user friendly software interface and one-click printing technology makes printing super simplified.
  • Comparability with different types of recoater lips such as ceramic, PU, alloy steel etc.
  • Reduced gas consumption during printing ≤6 L/min helps reducing operation cost.
  • Traceable print records after every print and real-time display of readings for various sensors.

Open System

  • Open parameters for editing laser power, scan speed, scan direction, up and down facing surfaces etc.
  • Open system ensures freedom to choose among wide range of metal powders available in market.
  • Process software can be integrated with Siemens NX software to realize effective planning of design, simulation and printing path planning, within one software and highly improving the production efficiency.
  • Process software supports SLC and CLI formats.

Device Specifications

DeviceSpecifications
Machine Model EP-M450
Build Volume (X × Y × Z) 450 × 450 × 550 mm (17.72 × 17.72 × 21.65 in)
Optical SystemFiber Laser 1 / 2 / 4 × 500 W (700 W and 1000 W are optional)
Spot Size70 - 120 µm
Max Scan Speed8 m/s
Layer Thickness 20 - 120 µm
Theoretical PrintspeedUp to 190 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply 380 V, 50 / 60 Hz, 14 ~ 22 kW
Gas SupplyAr / N2
Oxygen Content≤100 ppm
Dimension (W x D x H)5670 × 3700 × 3325 mm
Weight10000 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
