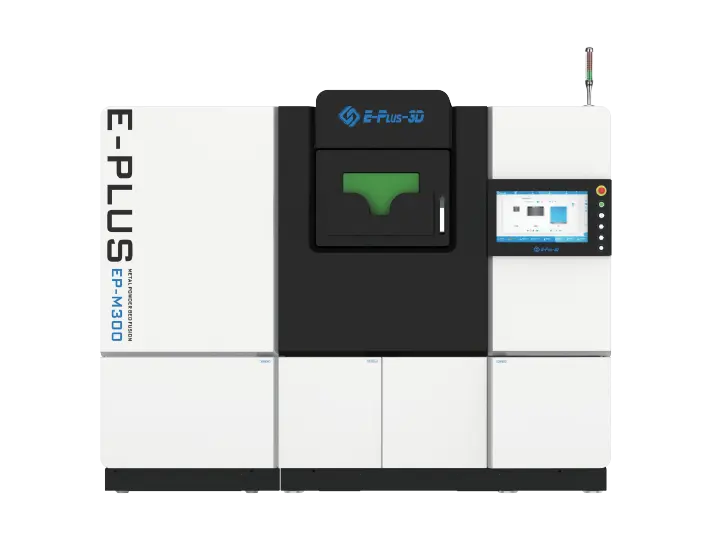

EP-M300 Metal 3D Printer

Eplus3D introduces EP-M300 to the successful line of MPBF™ metal AM solutions.

The new EP-M300 is a marvelous metal printer that makes the production of reliable and high quality large metallic parts viable on industrial scale without requiring any tools.

Consult an Expert
Request A Quote

Optimized Mechanical Design

  • Big building chamber, single or dual laser optional.
  • User friendly, dual filter systems, high security.
  • Various of performance recoating lips available.

Open System

  • Open parameters for editing laser power, scan speed, scan direction, up and down facing surfaces etc.
  • Open system ensures free choice among a wide range of metal powders in the market.
  • Various material parameter packages available.
  • Process software supports SLC and CLI formats.

High Quality

  • High density and less deviation of the printed parts.
  • The optimized gas flow design ensures efficient removal of smoke and splatter as well as achievement of uniform and consistent full size printing.
  • Dynamic software with ability to divide the model into different sections like upper and lower surfaces, core areas and small areas etc.

Reliable & High Safety

  • Excellent core optic components from world-class suppliers and mature process control parameter algorithm provides highest part quality.
  • High quality uniform part printing due to excellent control over building environment and components.
  • Double locking from mechanical lock to improve safety.
  • Alarming when the access door is open abnormally, to ensure the safety of use.
  • Two-glove structure of the access door makes it possible to operate without opening the door.

High Efficiency

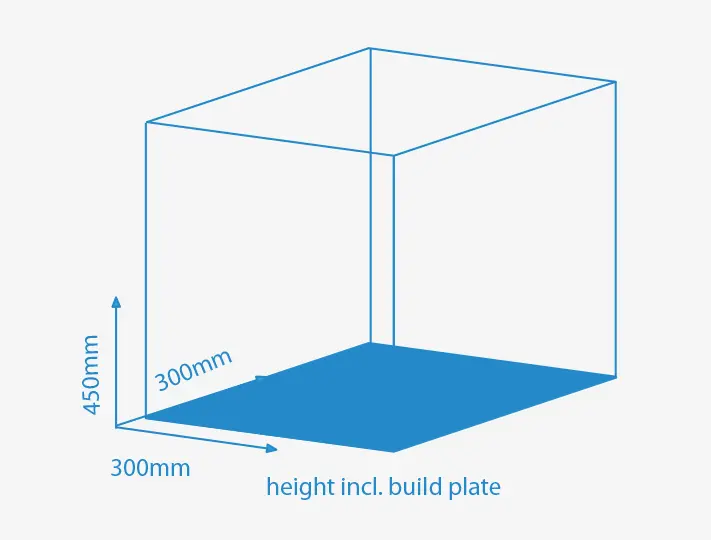

  • Build volume (X x Y x Z) is up to 300 x 300 x 450 mm (height incl. build plate).
  • Printing with increased layer thickness can be realized to inprove production capacity.
  • With in-house developed processing software (EPHatch), optimized scanning strategies can be achieved yielding reduced print duration.

Cost-effective & Easy Operation

  • Blowback enabled coarse and fine gas-filtration system with 1500 hours.

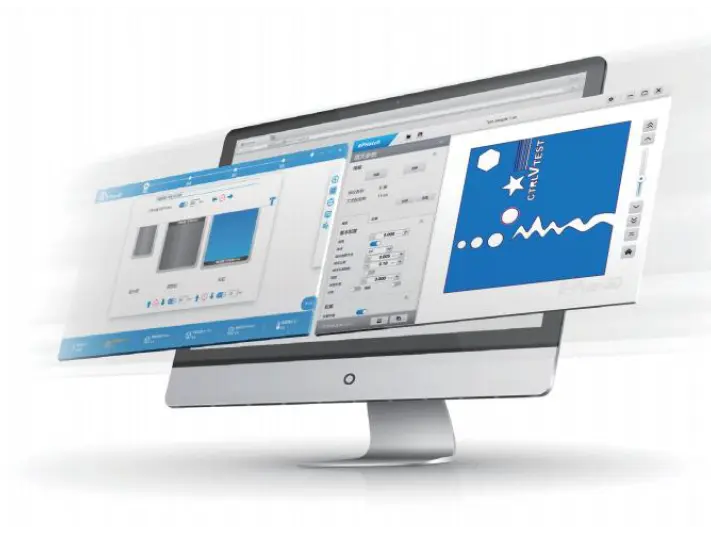

  • Highly user friendly software interface and one-click printing technology makes printing super simplified.
  • Reduced gas consumption during printing ≤6 L/min helps reducing operation cost.

Device Specifications

DeviceSpecifications
Machine Model EP-M300
Build volume300 x 300 x 450 mm (11.81 x 11.81 x 17.72 in)
Optical SystemFiber Laser 500 W / 700 W / 1000 W (single or dual-laser optional)
Spot Size20 - 120 μm
Max Scan Speed8 m/s
Layer Thickness 20 - 120 μm
Theoretical PrintspeedUp to 95 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply 380 V, 50 / 60 Hz, 5 / 8 kW
Gas SupplyAr / N2
Oxygen Content≤100 ppm
Dimension (W x D x H)2990 x 1320 x 2590 mm
Weight2900 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
