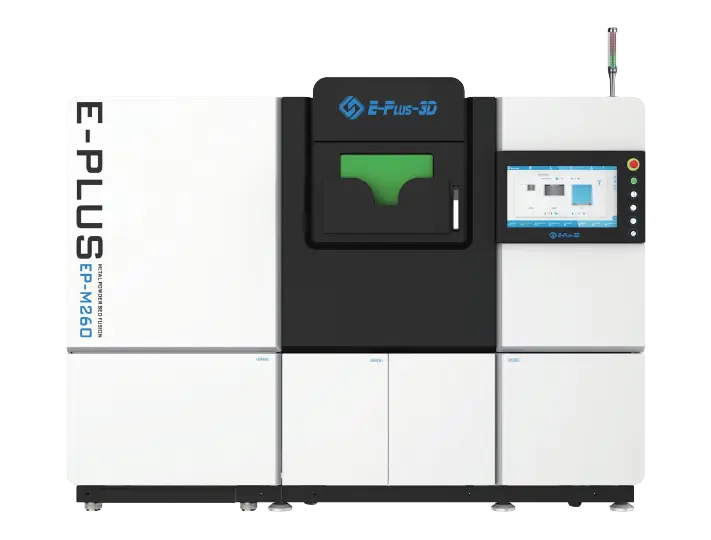

EP-M260 is an industrial metal 3D printer that uses advanced metal powder bed fusion (MPBFTM) technology.
It is capable of easily and quickly converting CAD data into high-performance, complex structure metal parts.
The 3D printer is an ideal choice for medium sized parts and small batch production.
| Device | Specifications |
|---|---|
| Machine Model | EP-M260 |
| Build volume | 260 x 260 x 390 mm (10.24 x 10.24 x 15.35 in) |
| Optical System | Fiber Laser 500 W / 700 W (single or dual-laser optional) |
| Spot Size | 70 - 100 μm |
| Max Scan Speed | 8 m/s |
| Layer Thickness | 20 - 120 μm |
| Theoretical Printspeed | Up to 55 cm³/h |
| Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
| Power Supply | 380 V, 50 / 60 Hz, 5 / 6 kW |
| Gas Supply | Ar / N2 |
| Oxygen Content | ≤100 ppm |
| Dimension (W x D x H) | 2800 x 1300 x 2410 mm |
| Weight | 2300 kg |
| Software | EPControl, EPHatch |
| Input Data Format | STL or other Convertible File |
