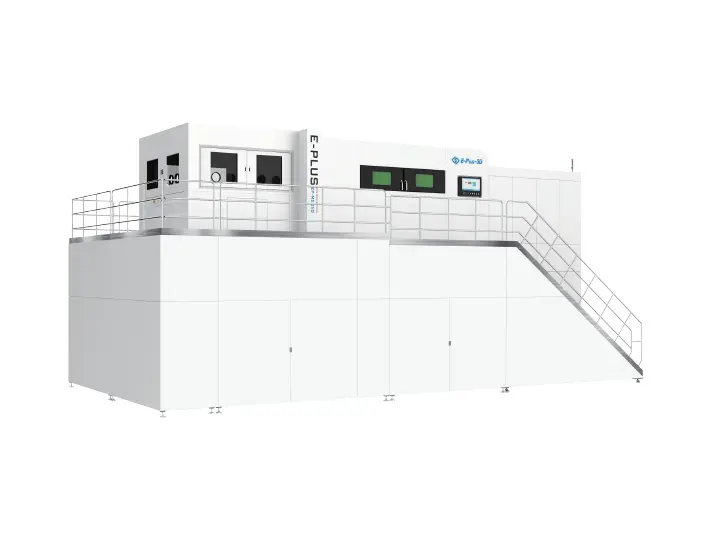

EP-M2050 Metal 3D Printer

EP-M2050 adopts Metal Powder Bed Fusion(MPBF™) technology, featuring a large forming chamber that reaches up to 2050 x 2050 x 1100 mm (with a customizable Z-axis up to 2000 mm).

Equipped with 36 lasers and 36 galvanometers, EP-M2050 uses the technologies of multi-laser precision positioning and precise control of overlapping areas.

Consult an Expert
Request A Quote

Breakthrough Of Size Limits & High Efficiency

  • A large forming chamber, reaching up to 2050 × 2050 × 1100 mm (with a customizable Z-axis up to 2000 mm), is equipped to handle one-piece forming of large-sized components and parts mass production.
  • The printer is capable of printing at speeds of up to 1080 cm³/h, with 36 lasers simultaneously engaged in the printing process, which enables the printer to achieve uniform and consistent full-size printing.

Excellent Quality & Good Consistency

  • Excellent high beam quality (M² ≤ 1.1) and detail resolution ensure the forming accuracy and mechanical properties of printed parts.
  • Print density > 99.9% and fluctuation of mechanical properties < 5%.
  • Large layer thickness printing with adjustable recoating layer thickness can meet different printing requirements, demonstrating excellent large layer thickness printing performance.

Open System

  • Open parameters for editing such as laser power, scan speed, scan direction and up and down contours.
  • Process software enables the effective planning of design, simulation and printing path planning, within one software and highly improving the production efficiency.
  • Process software supports SLC and CLI formats, enabling real-time modification of printing parameters during the printing process.

Cost Effective & Resource Efficient

  • Three-stage filtration, which can use blow back function to remove the fume, equipped with permanent filter element.
  • Low gas consumption, effectively controls gas consumption during processing, and reduces production costs.
  • Offering diverse scraper options (rubber, alloy steel) for selection based on printing materials and part needs, further optimizing printing results.

Device Specifications

DeviceSpecifications
Machine Model EP-M2050
Build volume2050 × 2050 × 1100 mm (80.71 × 80.71 × 43.31 in)
Optical SystemFiber Laser 36 / 49 / 64 × 500 W (700 W and 1000 W are optional)
Spot Size70 - 120 μm
Max Scan Speed8 m/s
Layer Thickness 20 - 120 μm
Theoretical PrintspeedUp to 1080 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply 380 V, 50 / 60 Hz, 117 kW
Gas SupplyAr / N2
Oxygen Content≤100 ppm
Dimension (W x D x H)12685 × 7185 × 6530 mm
Weight145000 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
