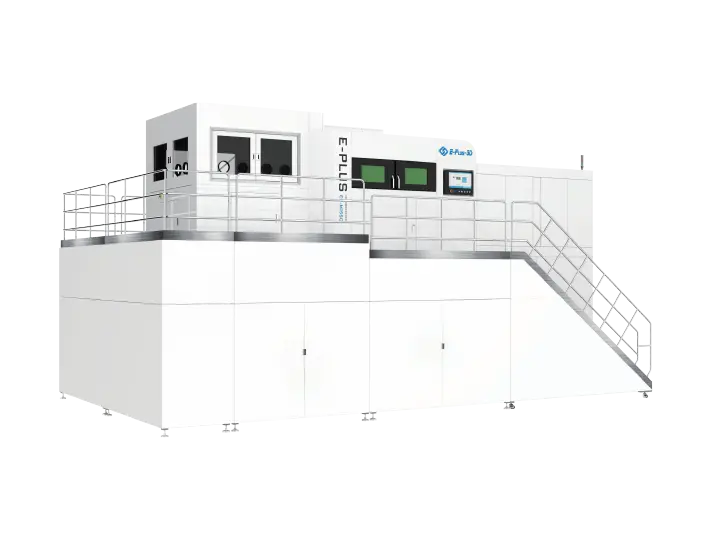

EP-M1550 is using a large building envelope and 16-laser system to ensure a high efficiency production.
The multi-laser precise positioning and overlapping control technology offers uniformity and stability throughout the whole printing phase.
| Device | Specifications |
|---|---|
| Machine Model | EP-M1550 |
| Build volume | 1550 × 1550 × 1100 mm (61.02 × 61.02 × 43.31 in) |
| Optical System | Fiber Laser 16 / 25 × 500 W (700 W and 1000 W are optional) |
| Spot Size | 70 - 120 μm |
| Max Scan Speed | 8 m/s |
| Layer Thickness | 20 - 120 μm |
| Theoretical Printspeed | Up to 650 cm³/h |
| Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
| Power Supply | 380 V, 50 / 60 Hz, 77 kW |
| Gas Supply | Ar / N2 |
| Oxygen Content | ≤100 ppm |
| Dimension (W x D x H) | 10180 × 5690 × 5650 mm |
| Weight | 70000 kg |
| Software | EPControl, EPHatch |
| Input Data Format | STL or other Convertible File |
