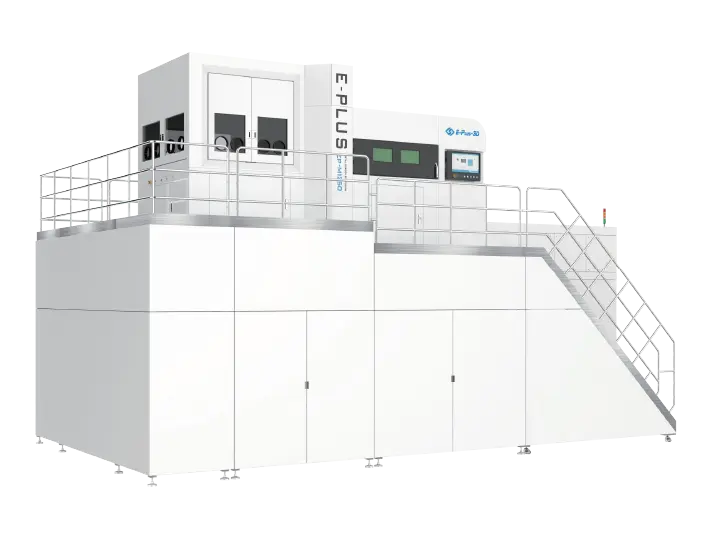

Using MPBF™ (Metal Powder Bed Fusion) technology, EP-M1250 is using a larger building envelope and nine-laser system to ensure a high efficiency production. The precise positioning and innovative area splicing control technology offers uniformity and stability throughout the whole printing phase.
| Device | Specifications |
|---|---|
| Machine Model | EP-M1250 |
| Build Volume (X × Y × Z) | 1250 × 1250 × 1350 mm (49.21 × 49.21 × 53.15 in) |
| Optical System | Fiber Laser 9 × 500 W (700 W and 1000 W are optional) |
| Spot Size | 70 - 120 µm |
| Max Scan Speed | 8 m/s |
| Layer Thickness | 20 - 120 µm |
| Theoretical Printspeed | Up to 370 cm³/h |
| Material | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
| Substrate Heating | Substrate Heating Temperature 200 °C |
| Power Supply | 380 V, 50 / 60 Hz, 38.5 kW |
| Gas Supply | Ar / N₂ |
| Oxygen Content | ≤100 ppm |
| Dimension (W × D × H) | 9000 × 4800 × 6300 mm |
| Weight | 50000 kg |
| Software | EPControl, EPHatch |
| Input Data Format | STL or other Convertible File |
