Einstar Vega

Unleash Your 3D Vision, Wireless All-In-One 3D Scanner, You can take the VEGA with you wherever you go.

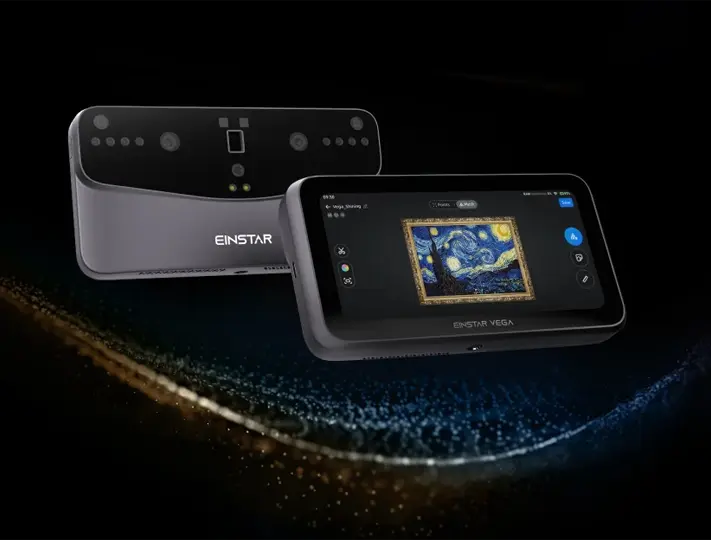

ALL-IN-ONE System

You can take the VEGA with you wherever you go.
Scan, save, and share the data at any time, unleashing endless possibilities with 3D vision.ac

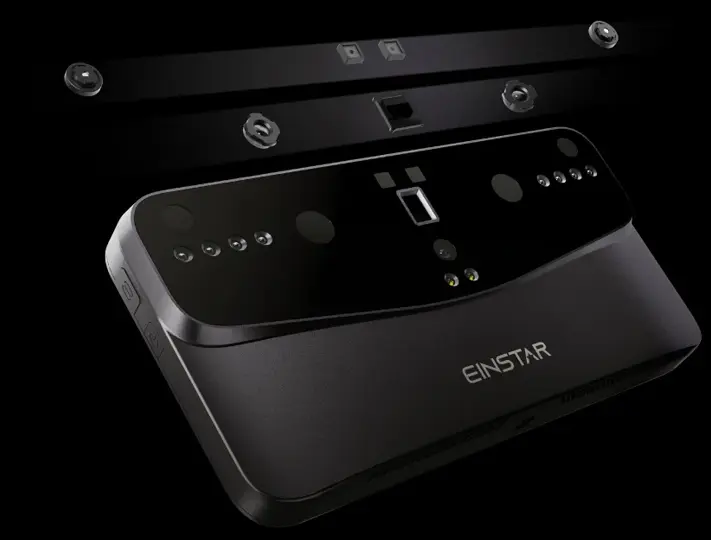

Two 3D Scanners in One

VCSEL For Long Range Scanning

MEMS For Short Range Scanning

Pick up and Scan

Wireless Solution

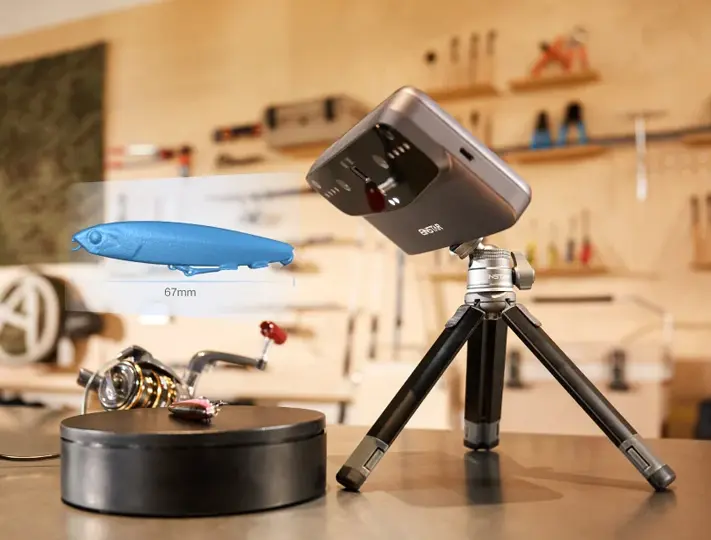

Comprehensive Object Scanning

Coverage from small to large objects
Fast Mode:

HD Mode

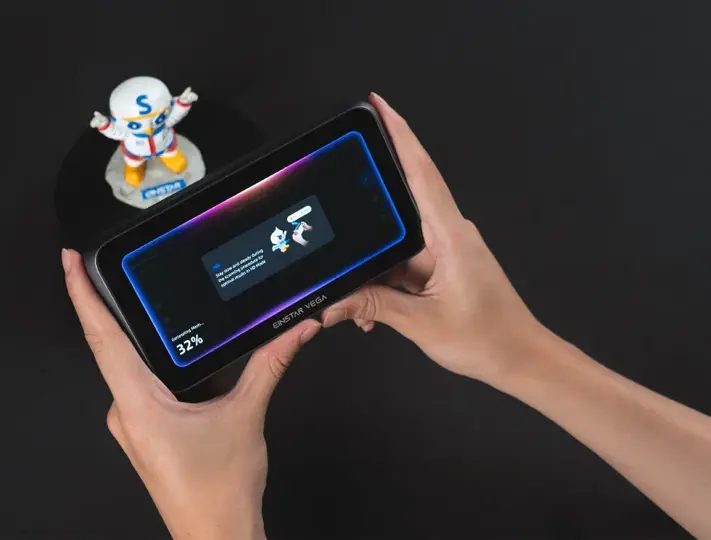

Beginner-Ready Design

One-Click Processing

Powerful Hardware

SHINING 3D Cloud

One Touch Sharing of 3D Scanned Data to Showcase Your Shining Ideas

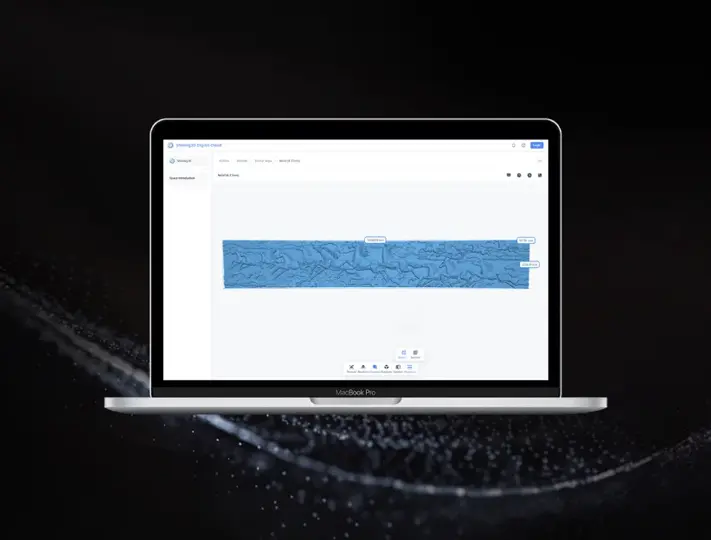

PC Software StarVision

Compatible with Windows and Mac OS

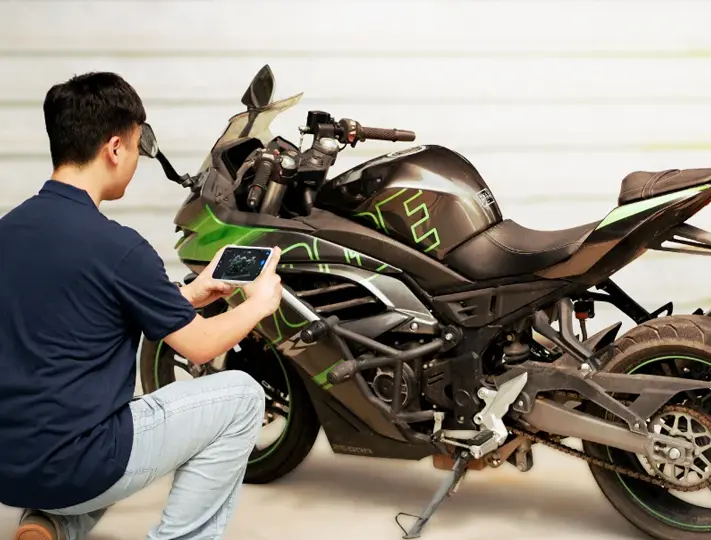

Reliable Scanning Outdoor and Indoor

Device Specifications

Scan ModeHD ModeFast Mode
Light Source Infrared MEMSInfrared VCSEL
Point Distance 0.05 - 3 mm0.5 - 10 mm
Capture FrameUp to 15 FPSUp to 20 FPS
Working Distance100 - 300 mm350 - 1500 mm
Data Alignment Mode Feature alignment, Markers alignment, Texture alignment
IR Camera Resolution 2MP1.3MP
Color Camera Resolution 48MP
Output Formats ply; stl; obj; asc
Outdoor Scan Yes
Scanner Body Weight Limited edition: 643 g; Regular edition: 535 g
Scanner Size 180 mm × 95 mm × 26.5 mm (L × W × H)
Supported OS No computer required for 3d scanning operation;
StarVision(Data processing program on PC):
Windows10/11(64-bit), macOS Recommended PC configuration:
Intel i7, 32 GB RAM; macOS 11.0(on Apple chip)
CPU8-core CPU, 2.4GHz
RAM32GB LPDDR4 Memory
Internal Hard Drive 32GB eMMC + 512GB SSD
Power Charger 65W fast charging, supports PD/PPS protocols
InterfaceWi-Fi 6, USB Type C
BatteryBuilt-in 5000mAh; External power bank charging supported
Touchscreen6.4'' 2K AMOLED
Supplemental Light 10 LED
IMU6 DoF
Operating Temperature Range -10℃ - 40℃
Operating Humidity Range 0 to 90% RH (non-condensing)
Packing Size 380 mm × 305 mm × 155 mm
Protection Grade IP50
