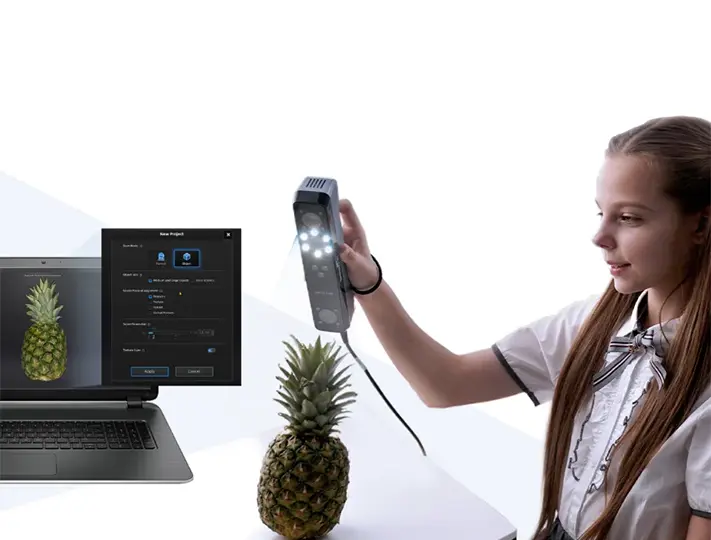

Our mission at SHINING 3D is to make 3D technology accessible to everybody. Einstar is our most affordable 3D scanner ever! You can digitize the world around you like never before! Einstar can easily capture stable and clear details at a fast pace with high quality data outputs. Start 3D scanning at ease today with Einstar
At 2B Digital, we don’t just sell 3D printers — we provide complete industrial 3D printing solutions tailored to your business needs in the UAE, KSA, Egypt and the Middle East.
Collect high density point cloud data fast and easily with point distance up to 0.1mm.
Benefit from built-in RGB color camera. 3D data with authentic colors.
Infrared VCSEL is ideal for scanning black and shiny reflective surfaces.
Smooth and fast, scanning speed up to 14 FPS.
Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors.
Provide a flexible working distance for small and large objects.

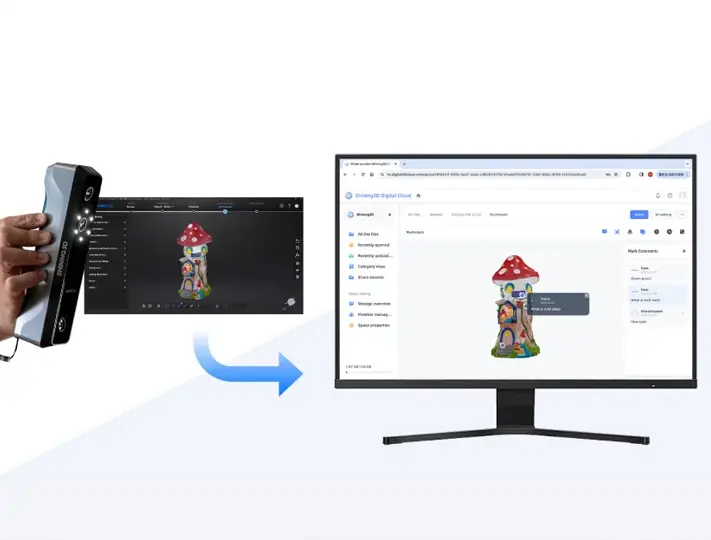

One-click sharing 3D scanning data on SHINING 3D digital cloud platform. Display your great and creative minds.ac
| Scan Mode | Structured Light Scan |
|---|---|
| Point distance | 0.1 ~ 3 mm |
| Light source | Infrared VCSEL structured light |
| Optimal working distance | 400 mm |
| Depth of field | 160 - 1400 mm |
| Max. FOV | 434 x 379 mm (under optimal work distance) |
| Scan speed | 980,000 points/s, up to 14 FPS |
| Align modes | Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers |
| Safety | Eye-safe |
| Texture scan | Yes |
| Outdoor scanning | Yes |
| Interface | USB2.0 or above |
| Output formats | OBJ; STL; PLY; P3; 3MF |
| Scanner size | 220 x 46 x 55 mm |
| Carrying case size | 245 x 245 x 90 mm |
| Scanner body weight | 500g |
| Operating temperature range | 0 - 40℃ |
| Operating humidity range | 10 - 90% |
| Certifications | CE, FCC, ROHS, WEEE, KC |
| Recommended configuration | OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB |
| Basic computer configuration | OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB |
