EinScan Pro HD

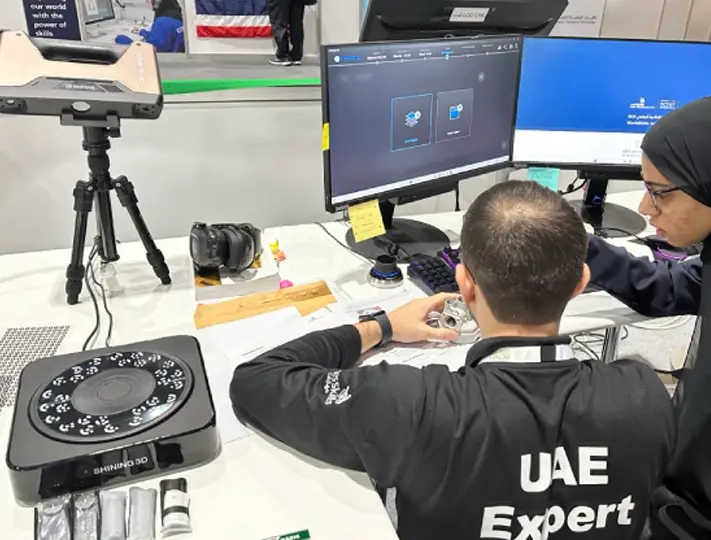

EinScan Pro HD is designated model the Mechanical Engineering CAD in WorldSkills Competitions. It provides competitors with a highly accurate and versatile device capable of capturing complex mechanical parts with seamless precision.
EinScan Pro HD is designated model the Mechanical Engineering CAD in WorldSkills Competitions. It provides competitors with a highly accurate and versatile device capable of capturing complex mechanical parts with seamless precision.

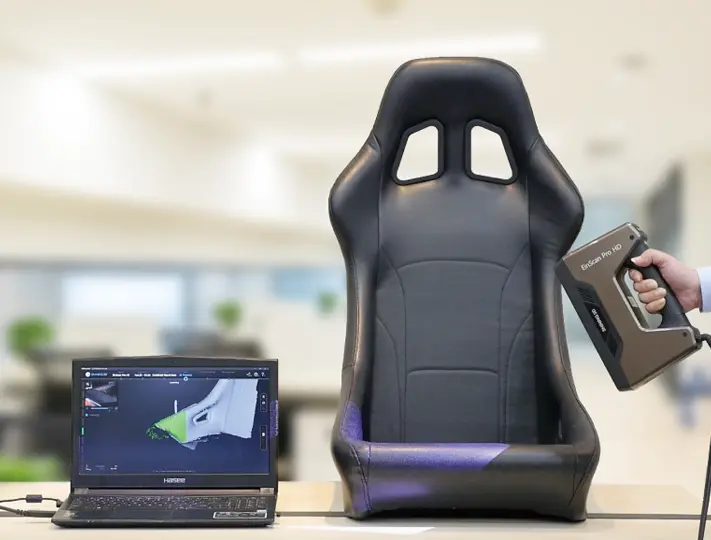

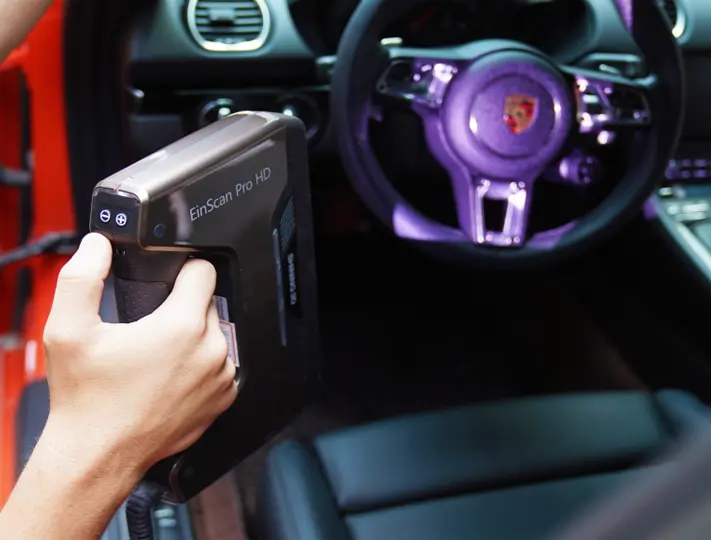

The EinScan Pro HD can capture objects of all sizes with ease. Whether you need to scan a car door or the intricate details of small industrial components, the EinScan Pro HD provides unmatched precision and efficiency for a variety of applications.
The Color Pack and Industrial Pack are optional add-ons for the EinScan Pro HD, offering various scanning experiences and applications.

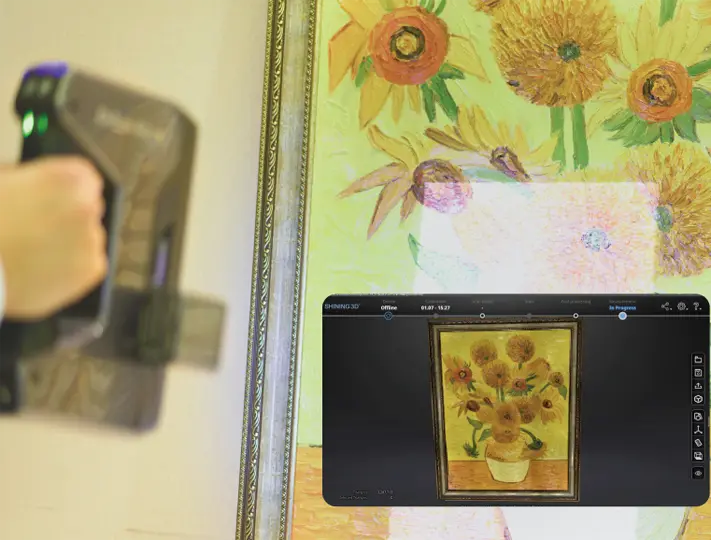

Enables the EinScan Pro HD
to capture full-color texture
along with geometry.

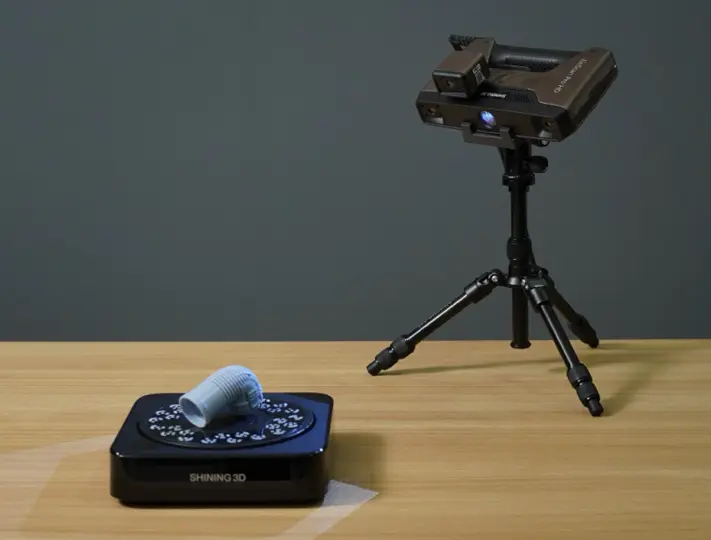

Enables the EinScan Pro HD to perform static automatic scans on a tripod for improved accuracy.
Download the free software Texture Mapper Lite to combine scanned data and photogrammetry.
Currently, EXScan Pro software seamlessly intergrates with Geomagic Control X and Geomagic Design X. This integration enhances the ease and convenience of your subsequent data processing.

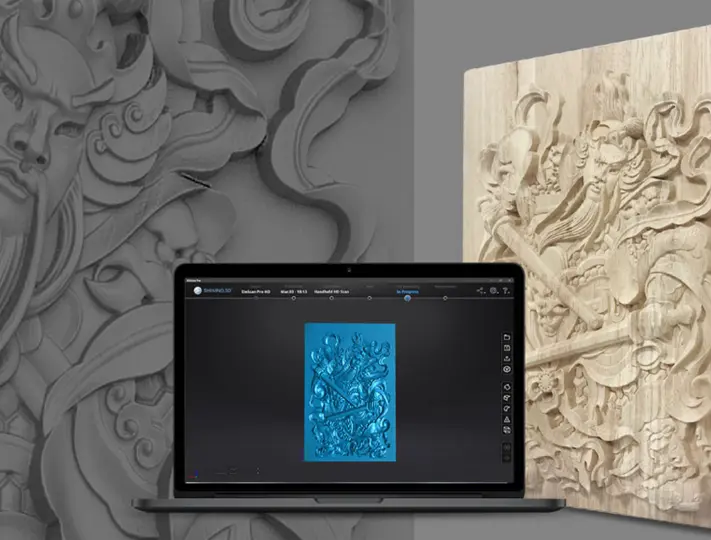

You can also switch to Texture Mapper Lite directly within EXScan Pro to edit your textures and make them more realistic and accurate.
By kinds of positioning methods, both scanner or objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.
Ergonomic designed EinScan Pro HD with a light weight, you can easily take the scanner anywhere you go; easy plug-and-play lets you run the scanner without complex installation; the compact size allows scanner to move freely with unlimited scanning experience.
Adopted stripe pattern scanning to fixed scan mode and handheld HD scan mode, handheld scanning in EinScan Pro HD is as good as station fixed scan, making scanning more freely.
Point distance:
With stronger lighting projection and a smart algorithm, EinScan Pro HD is capable of scanning a wider range of objects of dark or black color and casting metal surfaces, enriching the capability for 3D scanning of materials.
EinScan Pro HD can capture up to 3,000,000 points per second under handheld scan mode, and less than 0.5 s for every single frame in fixed scan mode, significantly improving scanning efficiency.
EXModel is a powerful bridge that simplifies CAD modeling from 3D scanning to manufacturing. With the integration of EXScan Pro, you can now seamlessly import data to EXModel with a single click after completing a scan. EXModel offers a comprehensive set of tools that enable you to create professional-grade CAD digital models that are compatible with your CAD software.
| Scan Mode | Handheld HD Scan | Handheld Rapid Scan | Fixed Scan with Turntable | Fixed Scan without Turntable |
|---|---|---|---|---|
| Scan accuracy | up to 0.045 mm | up to 0.1 mm | 0.04 mm (Single Shot Accuracy) | |
| Volumetric accuracy[1] | 0.3 mm/m (Markers Alignment) | / | ||
| Scan speed | 10 frames/s 3,000,000 points/s | 30 frames/s 1,500,000 points/s | Single Scan＜0.5 s | |
| Point distance | 0.2 mm-3 mm | 0.25 mm-3 mm | 0.24 mm | |
| Single Scan Range | 209*160mm-310*240mm | |||
| DOF | ±100 mm | |||
| Working Center Distance | 510 mm | |||
| Light source | LED | |||
| Align Mode | Marker Alignment, Feature Alignment [2], Hybrid Alignment [3] | Marker Alignment, Texture Alignment [4], Feature Alignment, Hybrid Alignment | Turntable Coded Targets, Feature, Marker, Manual Alignment | Marker, Feature, Manual Alignment |
| Texture scan | Yes (with Add-on: Color Pack) | |||
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||
| Special Scan Object | For the transparent or highly reflective objects, please spray powder before scanning. | |||
| Software Included | ExScan Pro | |||
| Data Formats | OBJ，STL，ASC ，PLY，P3，3MF | |||
| Scan Head Weight | 1.13 kg | |||
| OS System Support | Win10, 64bit | |||
| Recommended configuration | Graphics card: NVIDIA RTX2060 and higher; video memory: >6G, processor: i7-9750, memory: 64G; interface: high-speed USB 3 | |||
| Required configuration | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: Intel i7-8700, memory: 16G; interface: high-speed USB 3.0 | |||
