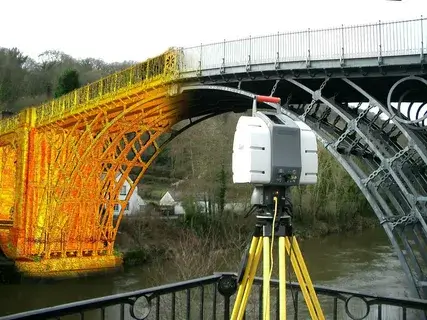

As a means for surveying, 3D laser scanning also provides the 3D laser scanner for buildings sector with precise topographical data of the land/contour.
Regardless of the structure’s surface characteristics or proportions, it catches the most minute geographic data with the accuracy of the targeted spots. LiDAR scanning is another name for 3D laser scanning based on LiDAR (Light Detection and Ranging) technology. Targeted to a specific location, the high-definition LiDAR scanner fires laser rays to capture the structure’s shape.
To create accurate multi-dimensional digital representations of the built asset, 3D laser scanning is a non-destructive method used to capture the spatial geometry of the structure in the form of a point cloud.
What is 3D laser scanner for buildings?
The distance traveled by the laser photons is measured in time of flight. The rays that are reflected return to the scanner with correct data about the physical geometry. The point cloud data is used by the BIM engineers to create a thorough three-dimensional model of the facility.

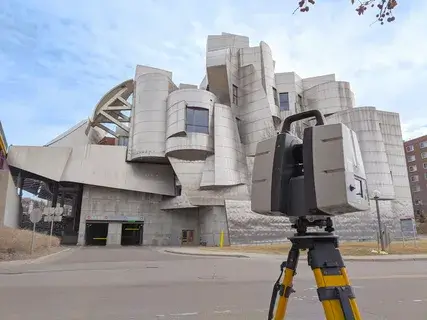

Best 3d laser scanner for buildings
Check out the following for a full step-by-step description of 3D laser scanning: – Gathering Website details – To give the best solutions based on the client’s requirements and project specifications, architects and engineers collaboratively work with them to understand the scope of their projects. To make sure that all the details are covered, the project scope is outlined in depth.
On-Site Setup – The laser scanning specialists have an iPad, a tripod, a Leica laser scanner, extra batteries, and an instruction booklet with them. To guarantee and deliver high-quality scans, the Team first evaluates the conditions on-site.
To finish the operation in the expected amount of time, this step entails examining the location for impediments, any unusual movement that might interfere with the scans, and designing the arbitrary scanner path.
Read More : Portable 3d Scanner For Reverse Engineering
How Is Laser Scanning Performed On-site?
To achieve the best scanning results, each point is tracked sequentially. To build a monolithic structured product for post-processing, all of the scans are connected.
When scanning, ls are checked in the model that was taken, which may change if the scanner is not set up on a level surface like it was for the prior scan.
Conversion of point cloud data – Engineers register and process the point cloud, eliminating noise and calibrating the coordinate system to get the most accurate measurements. Such accuracy demands a careful examination of the points that were captured. The acquired files are accessed, corrected, and converted using Leica Cyclone 360 software.

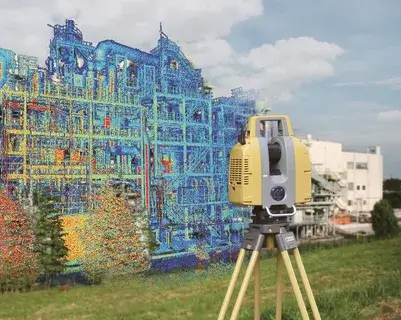

3d building scanning equipment
The engineer moves the scene to align properly through the vertical and horizontal axes if there are randomized problems. The team conducts a final QA/QC after completing all model verification to ensure that the engineers produce a highly accurate product. Point cloud format is then applied to the virtual collected files.
Deliverable 3D Model Generation – The engineers use the Point Cloud file to produce 2D and 3D deliverables to the project’s requirements, including the Level
Facility Management data creation requirements for the Level of Development (LOD) and Construction Information 3D laser scanner for buildings Information Exchange (COBie), using modeling software from Autodesk REVIT.
Read More : low cost handheld 3d scanner
Benefits of High-Definition Scanning (3D Laser Scanning)
The construction industry can make use of various advantages that LiDAR 3D scanning technology has over conventional techniques. Let’s look at the advantages of 3D laser scanners for buildings.
The highest level of precision is used by the 3D laser scanner for buildings to acquire precise spatial data of the scanned structure.
It aids in the better planning and design of the construction project for the architects and engineers.
Professionals may scan and collect geometries using the point cloud scanning technique from a secure location, avoiding the need to enter dangerous regions to take measurements.
The point cloud data offers the construction project’s information in its current state, allowing for hassle-free maintenance and facility management activities.
Civil engineers and architects can obtain the information they need for structure renovation and retrofit with the use of 3D laser scanning and as-builts drawings in the 3D laser scanner for the buildings industry.
Additional Benefits of 3D laser scanner for buildings
Reality capture technology can scan objects with the highest degree of precision and typically more quickly than with older techniques. It also provides scan findings more quickly.
It enables building owners to reduce the overall cost of the project.
A well-optimized workflow for 3D laser scanner for buildings operations is made possible by the detailed 3D model of the structure created via point cloud scanning.
Issues with LiDAR Technology
Listed below are some drawbacks of 3D LiDAR scanning technology for construction:
It requires a larger budget because it is significantly more expensive than conventional survey tools.
To operate and scan the objects for reality capture, you need the appropriate training.
As the laser cannot penetrate the surface to acquire spatial data, the scanners are unable to obtain the data of hidden geometries.
Laser scanning applications in the construction industry
In the fields of engineering, construction, and architecture, laser scanning is frequently employed. It has numerous uses that are extremely advantageous to the construction sector. 3D laser scanner for buildings information modeling and drone technology is being used by architectural engineers and construction specialists to capture the real-world environment. Let’s look at some uses for laser scanning technology.
- 3D modeling and 3D laser scanner for buildings design
- Designing in reverse
- Construction planning and management
- accurate topographic mapping of numerous types
- 3D laser scanner for buildings maintenance and facilities management
- Heritage sites’ modernization and renovation
To take use of digital technologies like digital twinning and 3D laser scanning, the construction engineering industry has been moving toward digitization.
The point cloud scanning technique has truly saved the construction, engineering, and architecture industries. Despite some drawbacks, digital scanning technology offers more advantages than disadvantages.
Three-dimensional scanning has several advantages for the 3D laser scanner for buildings and architectural industries, including the cost-, time-, accuracy-, and precision efficiency. The AEC sector has been embracing digital technology and utilizing its advantages for improvement and quality-assured results.
- Can a building be 3D scanned?
The ideal technique is to 3D laser scan a structure or location to take precise measurements of it. The use of 3D laser scanning in the engineering and construction industries is expanding. It is a technique to bring a team together and visualize a project, thus it is much more than just a design tool.
- What is 3d laser scanner for buildings price?
The basic cost for midsize things like this with minimum processing starts at $800 and can increase to $1200, for instance, if a customer needs more data on smaller points and has to employ a more precise and high-res 3D scanner in addition to the Eva scanner, such as Space Spider.
- How does LiDAR scan a building?
Start by aiming the device at your feet, then upwards. After that, you may use LiDAR technology to scan the space by pointing your camera at each wall in turn, and each one will be detected automatically.
